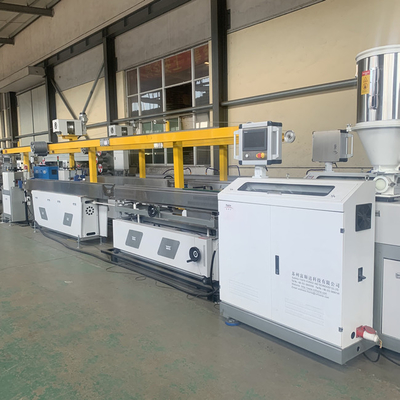

1.75mm 30kg/H Pla Filament Extruder , 3d Filament Making Machine

Minimum Order Quantity : 1 set Price : USD+28500+set
Packaging Details : Wooden case package Delivery Time : 5-8 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1+set+35 day
Place of Origin: China Brand Name: Friend machinery
Certification: CE ISO Model Number: FLD-45

Detail Information

Voltage: 380v/220v 50hz 3p Certification: CE,ISO
Output: 20-30kg/h Power: 15kw
Weight: 2.1t Application: Filament
Warranty: 1year Plastic Processed: PLA ABS PETG HIPS
High Light:

30kg/h pla filament extruder

,

1.75mm pla filament extruder

,

pla 3d filament making machine

Product Description

1.75mm 15-30kg/h 3D Printer Filament Machine Extrusion Line PLA ABS



Advantages

1. 3d printer filament extruder machine with 1.75mm 3mm

2. Lowest tolerance: +/- 0.03 mm. even +/- 0.02 mm.

3. PID temperature control, the accuracy up to ±1℃

4. It can process multi-materials like PLA ABS PET PA HIPS .

5. Pressure closed loop control is used to improve the stability of extrusion pressure and the uniformity of the 3D printer filament

6. Easy operation: SIEMENS PLC full-auto controling system

7. Measuring instrument, which can quickly respond to the change of the speed of the extruder, so as to achieve the requirement of the accuracy

6. The use of special winding tension transducer, to ensure the tension balance, rolling smooth and tidy, to avoid the phenomenon of knot

7. Remote monitoring can be achieved for you to build an intelligent automatic to provide convenient conditions

1.75&3mm 3D printer plastic filament extrusion line / extruder machine used for 3D printing/3D Printer Filament Extrusion Line



Description

We offer top qualify, competitive pricing and fast shipping policy.



All the raw materials are imported from Korea and Europe. And throught strict quality control while production, all 3D printer filament can keep a good fluency under a large temperature range. It will help to avoid the head clogging problem while environmental temperature changes.



The current products we manufacture include ABS(acrylonitrile butadiene styrene), PLA (polylactic acid), HIPS (high impact polystyrene) and PVA (polyvinyl alcohol plastic). We are continuously researching and developing new materials for 3d printing.



We welcome distributors and wholesalers worldwide. We understand that distributors and wholesalers may have different needs in logo, packing and delivery. We are experienced of expertise in customizing products to meet every individual needs.



Characteristics

(1) high strength, good toughness;

(2) density is small, when printing larger volume model lighter, save money;

(3) cost-effective, can be processed in wide range temperature;

(4) softer than PLA;

(5) diameter of 3.0/1.75mm, tolerance ± 0.02mm;

(6) 1 kg /plastic spool packaging, can be automatic feed;

(7) to be applied to a variety of 3D printer, Makerbot, Mendel, Prusa, Huxley, BFB series, etc...



Main Technical Parameter

Hopper Dryer 1Set
SJ35 / SJ45 Single Screw Plastic Extruder 1Set
Die 2Sets
Cooling water bath with Calibration 2Sets
Laser Gauge 1Set
Hall-off machine 1Set
Horizontal storage rack 1Set
Double station winder 1Set



More Product Pictures

1.75mm 30kg/H Pla Filament Extruder , 3d Filament Making Machine 01.75mm 30kg/H Pla Filament Extruder , 3d Filament Making Machine 11.75mm 30kg/H Pla Filament Extruder , 3d Filament Making Machine 21.75mm 30kg/H Pla Filament Extruder , 3d Filament Making Machine 31.75mm 30kg/H Pla Filament Extruder , 3d Filament Making Machine 4
