25kg/H 3mm ABS PLA 3D Printer Filament Machine Automatic control

25kg/H 3mm ABS PLA 3D Printer Filament Machine Automatic control

Product Details:

Place of Origin: Jiangsu province,China
Brand Name: FRIEND
Certification: CE,SGS,TUV
Model Number: SJ45

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: wooden package
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Material: PLA,ABS,PEEK,etc. Capacity: 15-25kg/h
Certification: CE HS Code: 84778000
Install Power: About 50kw Control: Automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas Delivery Time: 20 Days
High Light:

PLA 3D Printer Filament Machine

,

25kg/h 3D Printer Filament Machine

,

ABS 3d filament extruder machine

Product Description

15-25kg/h 1.75mm 3mm ABS,PLA,PEEK Material 3D Printer Filament Machine



Introduction

1. 3D Printing Filament Making Machine is mainly used in home or laboratory, the machine cost is low.
2. The powder of industrial filament extruder is low, about 0.5KW per hour.
3. The 3D Printing Filament Extruder can produce filament with different diameters of 1.5mm-3.0mm.
4. Easy to operate: 3D Printing Filament Making Machine with PLC automatic control system.



Components

1. Heater: cast aluminum heater (if peek and other high-temperature materials need to be replaced by ceramic heater).

2. Reducer: Jiangyin hard tooth surface gear reducer.

3. Electric appliance: Schneider.

4. Speed regulation: ABB AC variable frequency speed regulation.

5. Temperature control diagram: Omron.

6. Screw material: 38CrMoAlA nitriding.



Our Service

A) Pre sales service:

1. Introduce product features and applications to customers in detail.

2. Select economical and practical machinery and equipment for customers.

3. Provide operation data of relevant machinery and equipment.

4. Provide commissioning mode for customers.



B) Sales service:

1. Recommend the engineering conditions required for the installation of machinery and equipment.

2. Communicate the manufacturing progress of the machine with the user in time.

3. Provide assistance in technical conditions, screw combination and barrel configuration

Required by the product.



C) After sales service:

1. Provide on-site technical assistance in installation, commissioning and training.

2. Archive customer information in detail.

3. Provide long-term maintenance services and spare parts.

4. Provide technical support for customers to develop new products.

5. Provide one year of free maintenance.



Main Technical Parameter

Machine Quantity(set)
Color mixer 1 To mix with different color masterbatch.
Vacuum feeder+ Hopper dryer 1 Automatic feeding.
SJ extruder with mould 1 Material melting and extrusion.
Hot water tank 1 To make filament soft and no bubble.
Cold water tank 1 Material cooling.
Laser measuring machine 1 To measure the filament diameter.
Haul off machine 1 Traction, control the diameter.
Winding machine 1 Wind on the spool.
Filament accumulator 1 Store the filament.
Vacuum packing machine 1 Packing the spool.



More Product Pictures

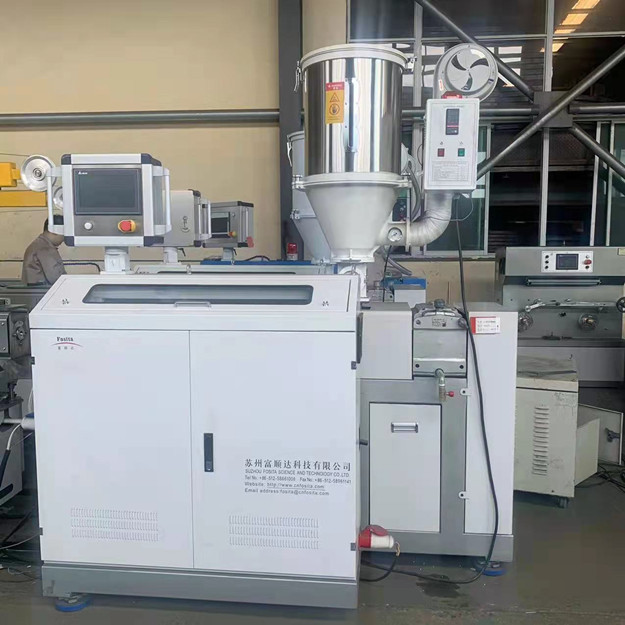

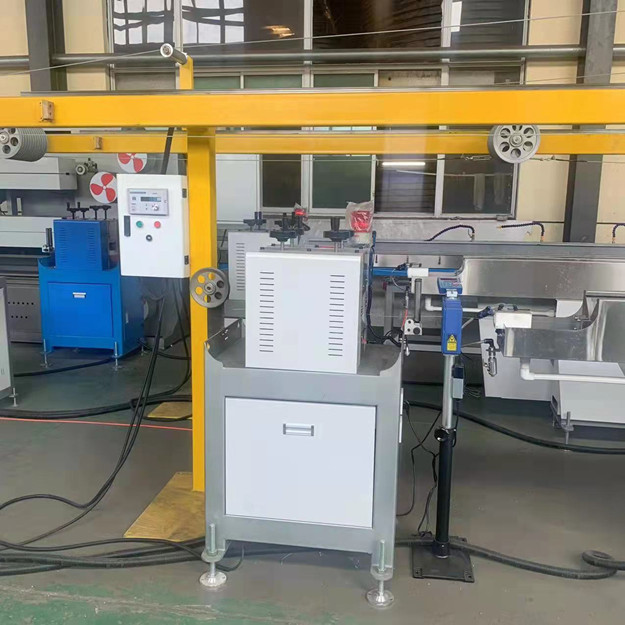

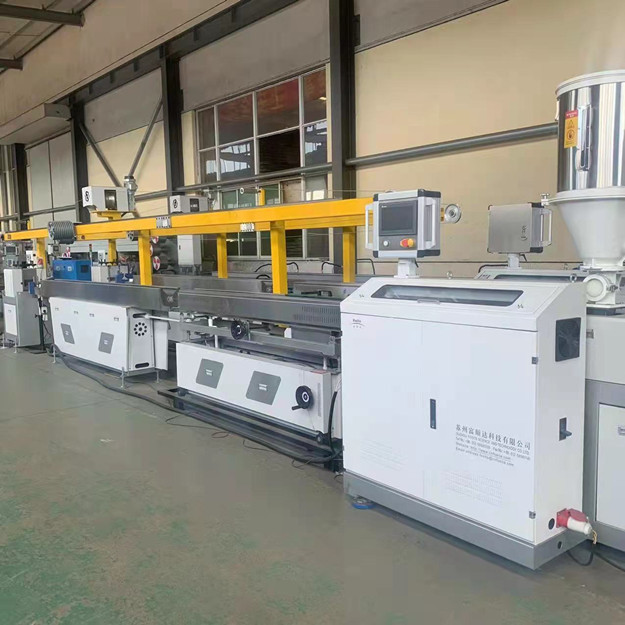

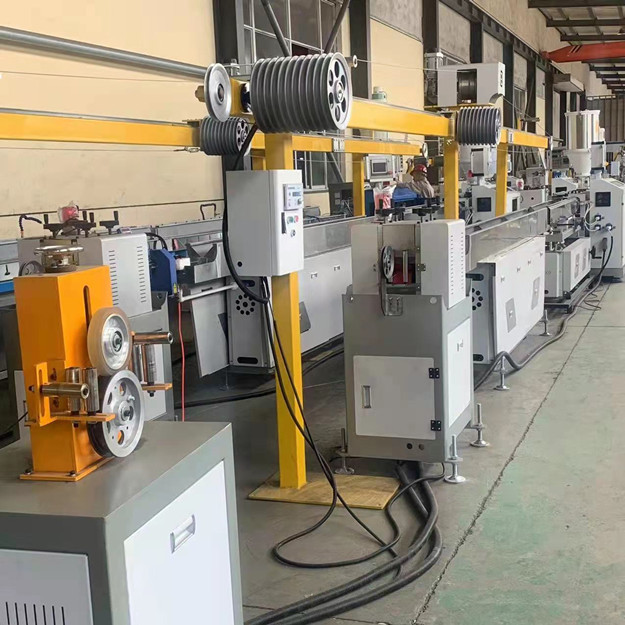

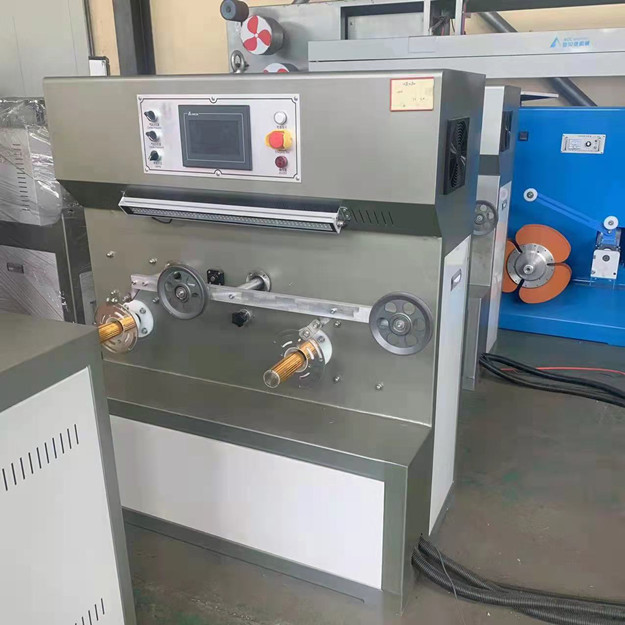

25kg/H 3mm ABS PLA 3D Printer Filament Machine Automatic control 025kg/H 3mm ABS PLA 3D Printer Filament Machine Automatic control 125kg/H 3mm ABS PLA 3D Printer Filament Machine Automatic control 225kg/H 3mm ABS PLA 3D Printer Filament Machine Automatic control 325kg/H 3mm ABS PLA 3D Printer Filament Machine Automatic control 4
