| Brand Name: | Friend |
| Model Number: | SJ65/30 |
| MOQ: | 1 set |
| Price: | negotiation |
| Supply Ability: | 20 sets per year |

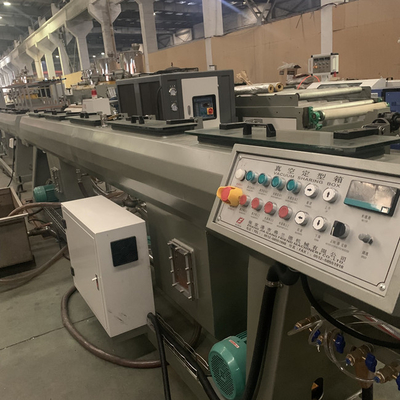

Construction use 50kg/h CE approved PE pipe extrusion line Siemens motor
Description
1. Equipped with special single screw extruder for polyolefin; It has the characteristics of fast plasticization and high efficiency.
2. The specially designed coextrusion die has reasonable flow channel, smooth inner and outer walls and low internal stress.
3. The pipe diameter is between 20-160mm, and the production speed reaches 18m / min.
4. A unit has multiple purposes. It can produce ordinary PP-R, nano antibacterial tube, PE-RT and pe-x.
5. If a coextrusion machine and die are added on the original basis, PP-R glass fiber reinforced composite pipe can be produced
Application
1. The large-diameter PE pipe of urban tap water pipe network system is hygienic, non-toxic and non scaling. It is more suitable for urban water supply mains and buried pipes, with safety, sanitation and convenient construction.
2. Agricultural irrigation pipe PE pipe has smooth interior, large flow, cross road construction and good impact resistance. It is an ideal tool for agricultural irrigation.
3. Chemical industry, chemical fiber, food, forestry, pharmacy, light industry, papermaking, metallurgy and other industrial raw material transmission pipelines.
4. Greening the water supply network requires a large number of water pipes. PE pipes have good toughness and low cost, making them the best choice.
5. Sewage discharge pipe PE pipe has unique corrosion resistance and can be used for industrial wastewater and sewage discharge pipe with low cost and low maintenance cost
Advantages
1. Distributed spiral compound extrusion die ensures uniform and stable melting pressure and flow, and smooth pipe surface.
2. Vacuum calibration and stainless steel spray water cooling box, accurate calibration and fast cooling speed.
3. Multi claw traction device and variable frequency speed regulation are adopted.
4. Equipped with planetary cutter. Capable of cutting large diameter and thick wall pipes.
5. The system pipeline shall be provided.
6. Use winding machine for small diameter. Large pipe stacker;
Main Technical Parameter
| Pipe range(mm) | 16-63 | 20-110 | 75-160 | 90-250 | 110-315 | 160-450 | 315-630 | 500-800 |
| Extruder(mm) | 45 | 60 | 75 | 75 | 90 | 90 | 120 | 150 |
| Extruder power(kw) | 30 | 75 | 110 | 110 | 160 | 160 | 280 | 335 |
| Extrusion capacity(kg/h) | 60-100 | 100-150 | 250-300 | 250-300 | 350-400 | 350-400 | 650-700 | 850-900 |
| Max speed(m/min) | 10 | 6 | 6 | 6 | 3 | 1.2 | 0.9 | 0.7 |
More Product Pictures
Why choose us?
We are a professional manufacturer of Plastic Extruders ,we produce plastic extrusion machine.
1. Cost performance is high
All the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality
We choose our material andequipment strictly.
All the material come to our factory must pass the quality test.
3.Engerneers available to serve oversea
4.Quick delivery
The company provide just in time delivery with its streamlined supply chain.
5.Cost saving
We take strong attention to every detail in the manufacturing process.
The quality control in our factory is very strict.
All defective semi-manufactures must be treated again or reject.
All the machine must be checked out ,then delivered to our customer.
All about that pushing up the price,but get good quality machine.
What we want to do is give our customer a good quality product with stable working and long lived.
Q: What is your delivery time?
A: Normally, it needs about 30 days. The exact time depends on production management.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is 35-60 days if the goods are not in stock, it is according to quantity.
Pre-sales service:
> Introducing in detail features and application of the products to customer
> Selecting economical and practical machine & equipment for customer
> Providing operation data of the related machine & equipment
> Providing means of trial performance for customer
Sales service:
> Recommending engineering conditions required for installation of the machine & equipment
> Communicating in time the manufacturing progress of the machine with user
> Providing assistance in technical conditions, screw combination and barrel disposition needed for product
After-sales service:
> Providing on-the-spot technical assistance in installation, commission and training
> Filling in detail customer’s information
> Providing long-term maintenance service and spare parts
> Giving technical support to customer for developing new product
> Providing free maintenance for a year
