Product Description
45kw waste PP PE PVC recycling plastic pulverizer machine multifunctional machine
Features
1. Safe and simple adjustment of cutting clearance
2. Low energy consumption and high throughput
3. Innovation and energy-saving design
4. Easy to maintain and control
5. Various accessories
6. Automatic regrinding of coarse powder
7. Dual cooling system
Details
Compact design and reasonable structure. The machine is equipped with an internal grading mechanism to grind and grade at the same time, so as to reduce energy consumption. The machine is equipped with fan, which can dissipate heat continuously. It is suitable for grinding thermal sensitive materials. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.
By adjusting the speed or air volume of the classifier without stopping the machine, the uniformly distributed products with the required particle size can be obtained. The top cover of the main engine shall be opened with pneumatic spring, and the structure of the fuselage shall enable it to be opened to both sides, so as not to encounter obstacles when cleaning and repairing internal parts. The main grinding parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of vulnerable parts. The bearing system adopts high-speed and precision bearings imported from abroad, with stable operation, low vibration and noise. The pipeline adopts quick disassembly structure, which is fast and convenient for disassembly and cleaning. Equipped with cyclone separator and collector, powder will not fly in the production process. The dust collection bag can effectively collect the fine powder in the air flow and meet the clean and environmental protection requirements of waste gas emission. The fine powder collected by the dust bag can be effectively recycled. Thus, the material loss is reduced.
Advantages
1. Water circulation air cooling is adopted, which is suitable for the processing of thermal sensitive materials.
2. Due to the high speed of the spindle and fixed blades, the feed is crushed into powder
3. The blade is made of wear-resistant steel with long service life
4. The machine is compact and can be maintained by opening the cover.
5. Simply adjust the cutting clearance through the spindle nut gasket
6. With air supply device, the cooling is uniform and the cooling speed is fast.
7. Fully sealed to prevent dust leakage
Main Technical Parameter
| Model |
SMF-400 |
SMF-610 |
SMF-800 |
| Blade disc size(mm) |
400 |
610 |
800 |
| Blade disc quantity(pieces) |
2 |
2 |
2 |
| Main motor power(kw) |
30 |
45 |
55 |
| Blower power(kw) |
3 |
5.5 |
7.5 |
| Flow valve power(kw) |
0.75 |
0.75 |
1.1 |
| Poweder size(mesh) |
10-100 |
10-100 |
10-100 |
| Capacity(kg/h) |
150(PE)
80(PP)
20(PE)
|
250(PE)
160(PP)
350(PE)
|
350-400(PE)
200-250(PP)
500(PE)
|

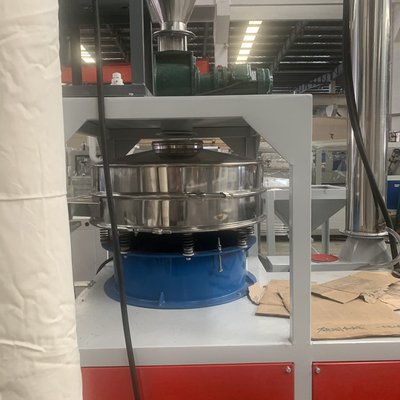

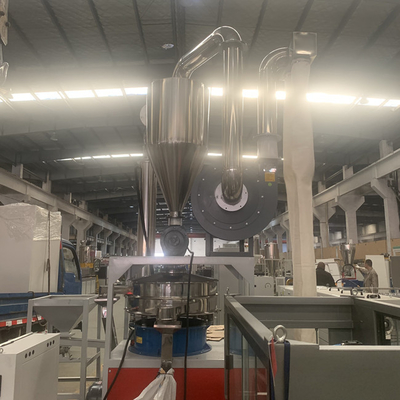

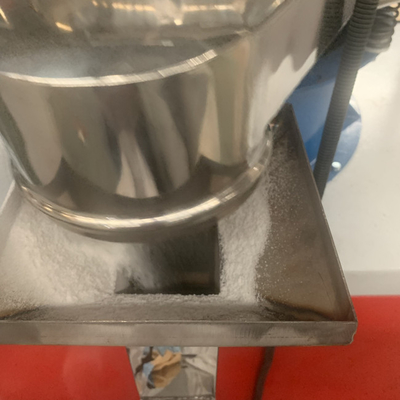

More Product Pictures
