3mm ABB Inverter Recycling 3d Filament Extrusion Line

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film packing and wooden case Delivery Time : 30 making days
Supply Ability : 20 sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: CE,SGS,UV Model Number: SJ45

Detail Information

Extruder: Single Screw Extruder With Vented Screw Motor Power: 15kw
Output: 15-30kg/h Inverter Brand: ABB
Color: Black Machinery Test Report: Provided
Key Selling Points: High-accurancy Warranty: 1 Year
High Light:

ABB inverter 3d filament extrusion line


3mm 3d printing recycling machine


3mm 3d filament extrusion line

Product Description

1.75mm 3mm ABB inverter voltage customized 3D printer filament machine



3D printing filament extruder / extruder is mainly used to produce high-quality ABS / PLA for all brands of 3D printers. The 3D printing filament extruder / extruder has high output and high performance. ABS / PLA filaments with diameters of 1.75 and 3mm can be produced. We use laser caliper to measure the diameter on the plastic filament extrusion line of 3D printer, and control the tolerance within 0.03mm.


3D printing has been a revolutionary technology since its birth and is becoming more and more popular in various industries. With the rise of 3D printing technology, our company has developed 3D printing filament machines and sold them to developed countries such as France, Britain, the United States, Russia and so on.



3D printing filament extruder production line, which can adjust the screw structure to produce 3D printing filaments of ABS / PLA materials. The accuracy of printing filament shall be controlled within ± 0.03mm. The production line can ideally process 1.75mm and 3mm ABS / PLA printing filaments. The screws are easy to remove and clean, so it is easy to change the color of the printed filament. The water tank has two parts, one for hot water and the other for cold water, so the roundness of the printed filament is easy to control.



1. heater: cast aluminum heater (if PEEK and other high temperature materials need to be replaced by ceramic heating).
2. reducer: Jiangyin hardened gear reducer.
3. electrical appliances: Schneider.
4. speed regulation: ABB AC variable frequency speed regulation.
5. temperature control chart: OMRON.
6. screw material: 38CrMoAlA nitriding.


Main Parameter

Model Screw Diameter(mm) L/D Screw Speed(rpm) Capacity(kg/h) Power(kw)
SJ-15 15 25 12-80 1-2 0.55-1.1
SJ-20 20 25 16-90 2-4 0.72-1.5
SJ-25 25 25 18-110 3-6 1.5-2.2
SJ-30 30 25,28,30 17-120 4-10 2.2-3
SJ-35 35 25,28 15-120 5-15 3-5.5
SJ-40 40 25,28 15-110 7-25 5.5-7.5
SJ-45 45 25,28 15-110 12-35 7.5-11
SJ-50 50 25,28 12-100 20-50 15-22
SJ-65 65 25,28,36 8-90 40-130 22-45


More Pictures

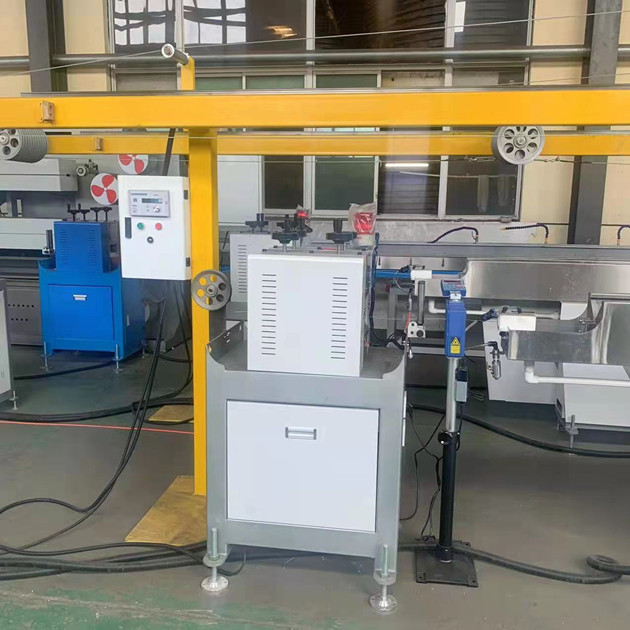

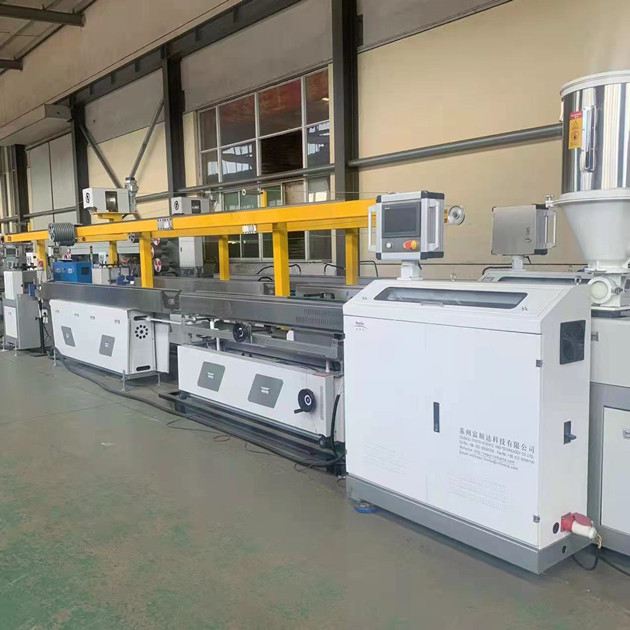

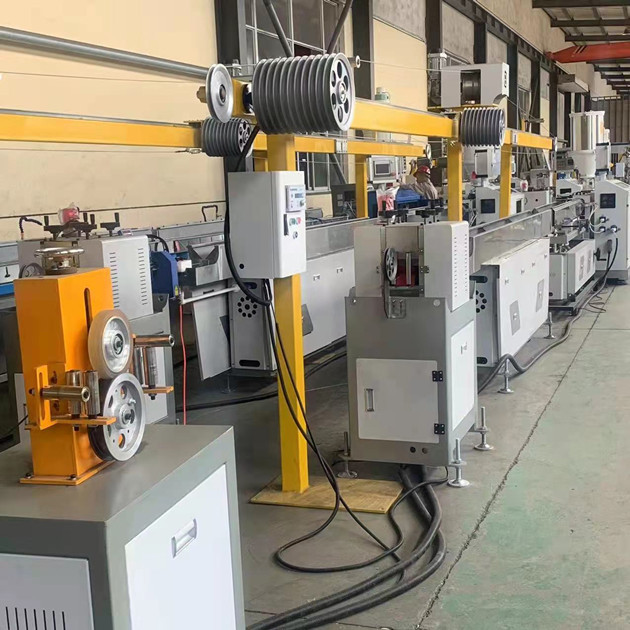

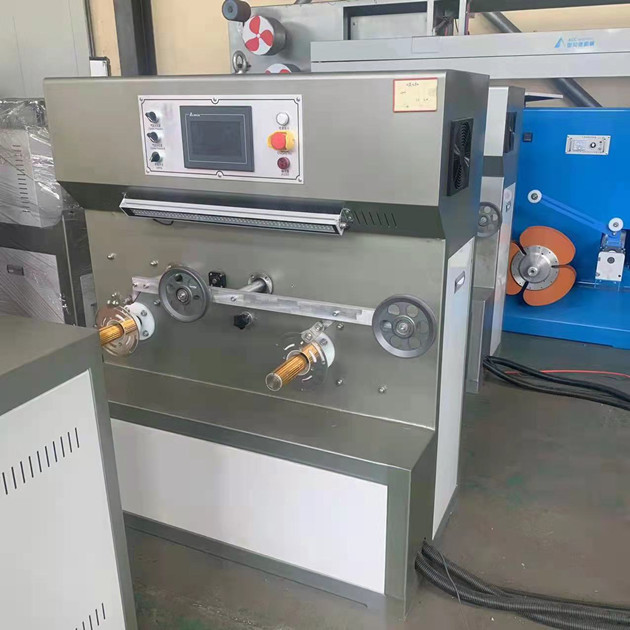

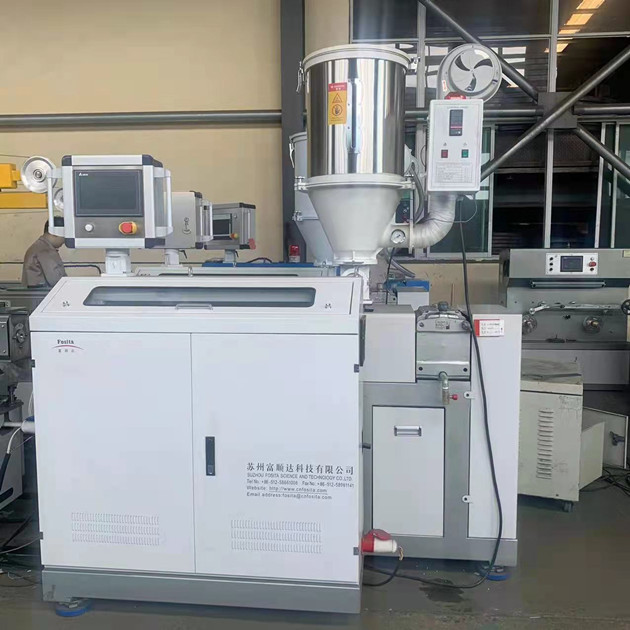

3mm ABB Inverter Recycling 3d Filament Extrusion Line 03mm ABB Inverter Recycling 3d Filament Extrusion Line 13mm ABB Inverter Recycling 3d Filament Extrusion Line 23mm ABB Inverter Recycling 3d Filament Extrusion Line 33mm ABB Inverter Recycling 3d Filament Extrusion Line 4
