150kg/H Pvc Scrap Plastic Pulverizer Machine 120 Mesh

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film package Delivery Time : 10-20 working day after deposit receive
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 SETS per month
Place of Origin: Jiangsu Province, China Brand Name: Friend
Certification: CE certificate Model Number: MF500

Detail Information

Raw Material: Waste Plastic Scraps Plastic Type: PVC
Capacity: 120-150kg/h Fine Powder: 20-120 Mesh
Color: Can Be Customized Machinery Test Report: Provided
Inverter: ABB Brand Collect Dust Device: Have
High Light:

150kg/h Plastic Pulverizer Machine


150kg/h pvc scrap pulverizer machine


pvc scrap Plastic Pulverizer Machine

Product Description

MF series PE PP PVC plastic recycling grinding machine plastic pulverizer machine



Pvc-pp-pe crusher can be used for PVC, PP, LDPE and HDPE materials. After crushing, the mesh can be 30-50 mesh and the capacity is 80-450kg / h. The pulverizer includes: vibrating feeder, pulverizer host, vibrating screen and dust removal system. The crusher has special requirements and can be customized.



1. Safe and simple adjustment of cutting clearance

2. Low energy consumption and high throughput

3. Innovation and energy-saving design

4. Easy to maintain and control

5. Various accessories

6. Automatic regrinding of coarse powder

7. Dual cooling system



Compact design and reasonable structure. The machine is equipped with an internal grading mechanism to grind and grade at the same time, so as to reduce energy consumption. The machine is equipped with fan, which can dissipate heat continuously. It is suitable for grinding thermal sensitive materials. Strong adaptability and narrow particle size distribution. The product fineness can reach 320-80 mesh.

By adjusting the speed or air volume of the classifier without stopping the machine, the uniformly distributed products with the required particle size can be obtained. The top cover of the main engine shall be opened with pneumatic spring, and the structure of the fuselage shall enable it to be opened to both sides, so as not to encounter obstacles when cleaning and repairing internal parts. The main grinding parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of vulnerable parts. The bearing system adopts high-speed and precision bearings imported from abroad, with stable operation, low vibration and noise. The pipeline adopts quick disassembly structure, which is fast and convenient for disassembly and cleaning. Equipped with cyclone separator and collector, powder will not fly in the production process. The dust collection bag can effectively collect the fine powder in the air flow and meet the clean and environmental protection requirements of waste gas emission. The fine powder collected by the dust bag can be effectively recycled. Thus, the material loss is reduced.


Main Technical Parameters

Model MF-400 MF-500 MF-600 MF-800
Disc Dia.(mm) 400 500 600 800
Main motor power(kw) 22-30 37-45 45-55 75-90
Fan power(kw) 3 4 5.5 11.5
Vibrosieve power(kw) 0.75 1.1 1.6 2.2
Capacity(kg/h) 120-200 180-400 260-600 550-950
Machine size(mm) 1700*1500*3400 1800*1600*3600 1900*1700*3800 2300*1900*4200
Machine weight(kg) 1200 1600 2200 3500


More Product Pictures

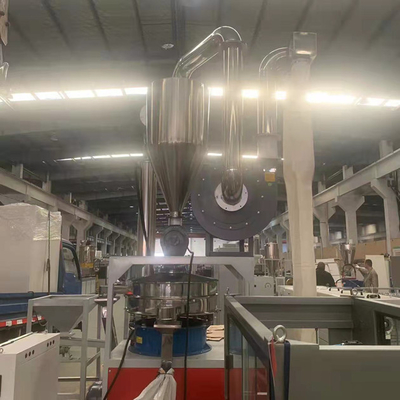

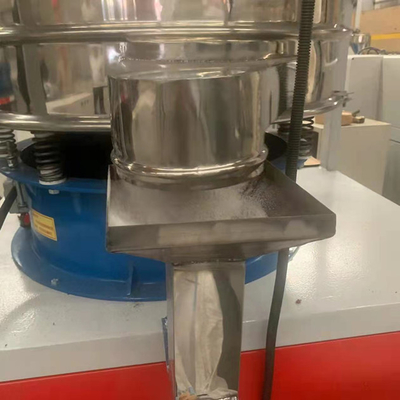

150kg/H Pvc Scrap Plastic Pulverizer Machine 120 Mesh 0150kg/H Pvc Scrap Plastic Pulverizer Machine 120 Mesh 1150kg/H Pvc Scrap Plastic Pulverizer Machine 120 Mesh 2150kg/H Pvc Scrap Plastic Pulverizer Machine 120 Mesh 3150kg/H Pvc Scrap Plastic Pulverizer Machine 120 Mesh 4
