Product Description
ABS PLA 3D Printer Filament Machine 1.75mm 3mm ±0.02mm
Application
Filament extruder for manufacturing 3D printer filaments: filaments are widely used in many different industries, such as mold manufacturing, footwear, industrial design and medical industry.
Advantage
1.3d printer filament small laboratory extruder with 1.75mm 3mm
2. Minimum tolerance: + / - 0.03mm. Even + / - 0.02 mm.
3. PID temperature control, accuracy up to ± 1 ℃
4. It can process PLA, ABS, pet, PA hips and other materials.
5. Pressure closed-loop control is used to improve the stability of extrusion pressure and the uniformity of 3D printer filament
6. Easy operation: Siemens PLC automatic control system
7. The measuring instrument can quickly respond to the change of extruder speed and meet the accuracy requirements
Feature
1. Small 3D printing filament extruder is a model developed by our company for special materials. It can be used to produce high temperature 3D printing line and carbon fiber composites.
2. The whole machine has small volume, low energy consumption and high precision.
3. The model can be used for peek, Pei, PVA, carbon fiber and other granular materials.
4. Adopt the screw specially designed by the company.
5. Standard 1.75 and 3mm high-precision molds.
6. High precision online laser detector.
7. Variable frequency adjustable speed tractor, adjustable speed.
8. Equipped with automatic cable and winder.
Main Technical Parameter
| Model |
FLD-35 |
FLD-45 |
| Capacity(kg/h) |
8-15 |
18-25 |
| Motor power(kw) |
7.5 |
15 |
| Equipment length(m) |
5.8 |
11-13 |
| Filament output(line) |
1 |
1 |
| Line tolerance(mm) |
0.03 |
0.03 |
| Operation man |
1 |
1 |
| Item |
Quantity |
| Hopper dryer |
1 |
| SJ35/45 single screw extruder |
1 |
| Die |
2 |
| Cooling water bath with calibration |
2 |
| Laser |
1 |
| Haul-off machine |
1 |
| Horizontal storage rack |
1 |

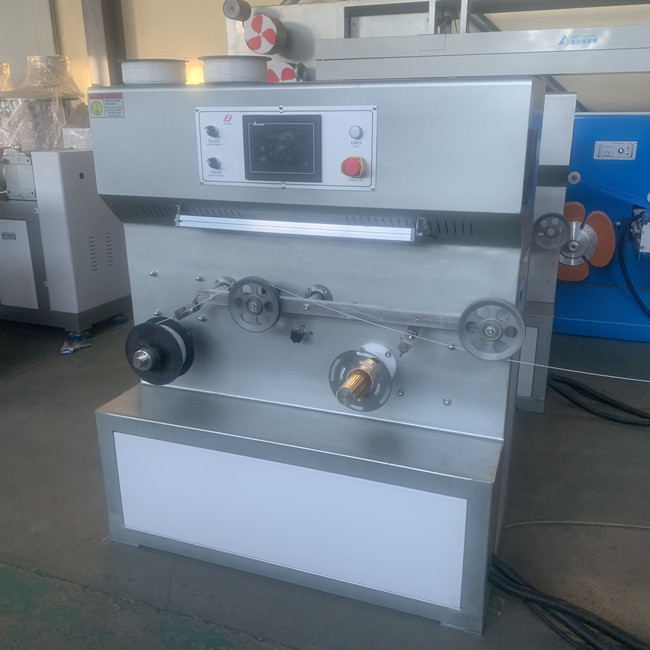

| Double station winder |
1 |

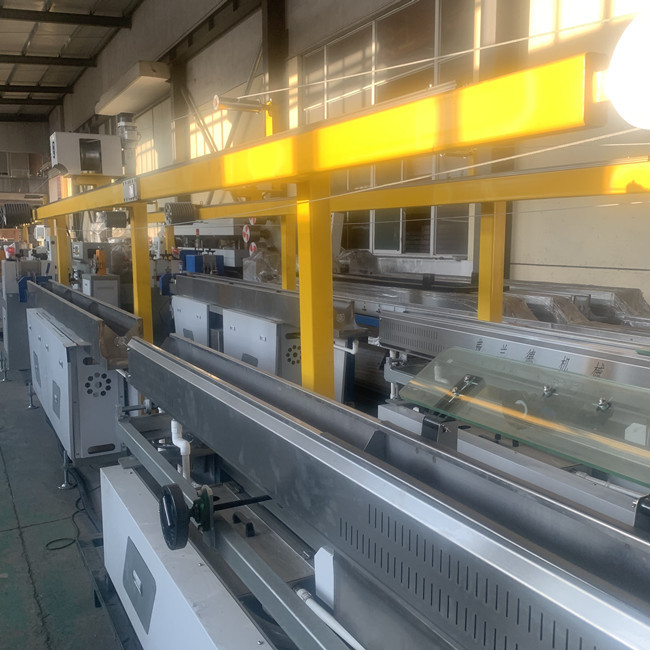

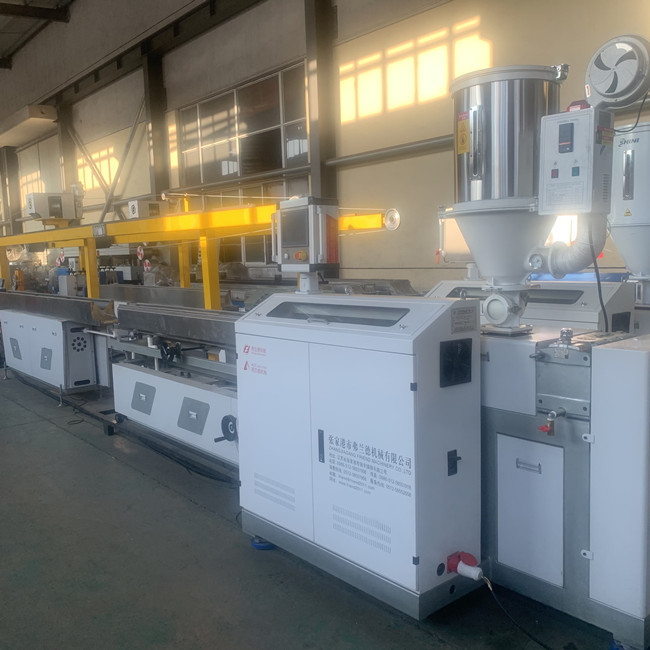

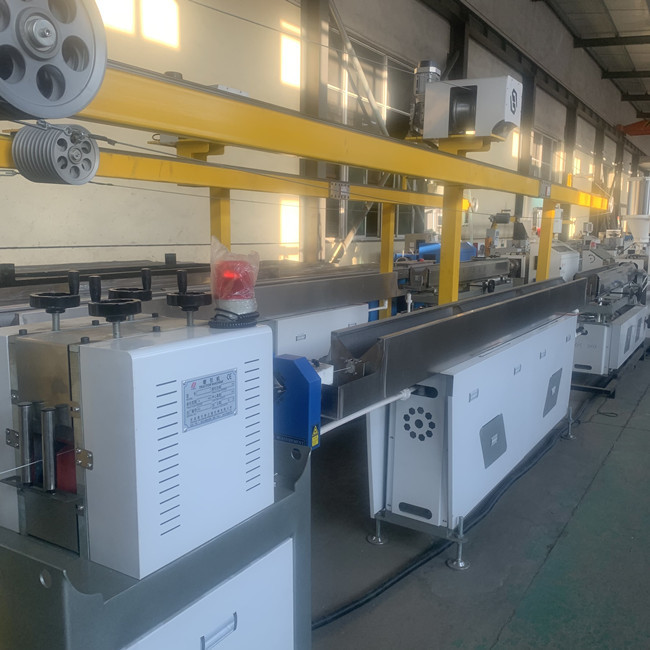

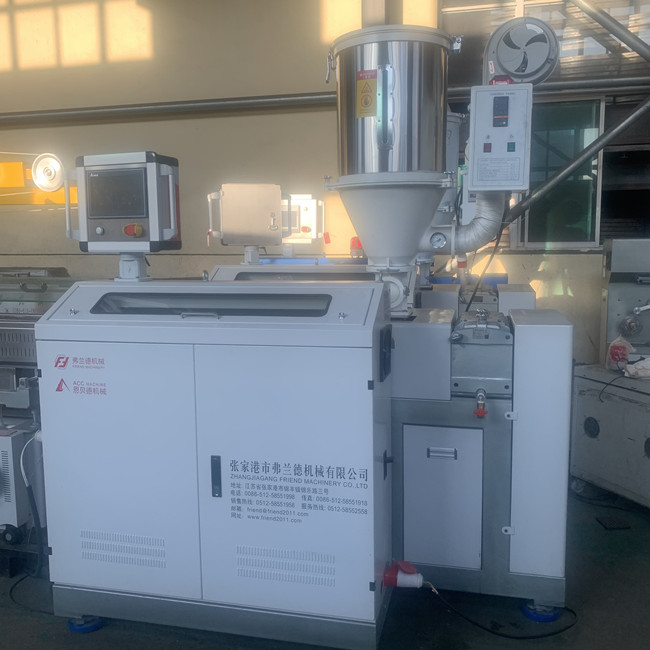

Product Pictures
