4m/Min Pvc Ceiling Wall Panel Manufacturing Machine 37kw Motor

4m/Min Pvc Ceiling Wall Panel Manufacturing Machine 37kw Motor

Product Details:

Place of Origin: Jiangsu province,China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SJSZ

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package or wooden package
Delivery Time: 30 worker days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Motor Power: 37kw Speed: 0-4m/min
Voltage: 380V 50HZ 3Phase Or Customized Machinery Test Report: Provided
Motor: Simens Brand Switch: Delixi Brand
Inverter: ABB Brand Warranty: 12 Months
High Light:

pvc ceiling panel manufacturing machine

,

4m/min pvc wall panel machine

,

4m/min pvc ceiling making machine

Product Description

37kw Motor Power PVC Ceiling Panel Extrusion Line PVC Powder Wall Panel



Information

PVC ceiling wallboard production line is mainly used to produce PVC ceiling with different section shapes and heights and PVC wallboard with width of 200mm, 250mm and 300mm. The surface of PVC ceiling can be printed in two colors and coated with gloss oil, or heat transfer printing or lamination treatment can be used to form marble and wood patterns on the product surface.



Advantages

1) It is applicable to various formulas. The calcium content is as high as 50% - 250%, and the additives can be reduced by 30%

2) The product has exquisite appearance and unified plasticity

3) Laser tracking avoids unstable extrusion flow and helps to realize the automation of the whole extrusion process.

4) Equipped with PID controller to provide automatic alarm function in case of system error.

5) High output and low energy consumption.

6) Durable.



Features

PVC profile production line can produce PVC window profile, door frame, plate, ceiling, etc. The machine can also produce wood plastic profiles (WPC).

To produce PVC profiles, a high-speed mixer should be equipped to mix PVC powder, CaCO3 and other additives according to your formula. The mixture is then fed into a conical twin-screw extruder for production. The mixed material will be extruded through different dies to produce profiles of different shapes. Then use the vacuum calibration groove to calibrate and maintain the shape, and then drag out the cutting. You can cut different lengths, 4 meters, 6 meters and so on.

In order to ensure the quality and good performance of our machine, we use Siemens Bede brand extruder main motor and ABB frequency converter for speed control.

China PVC plastic special-shaped panel wall panel ceiling Extruder - China PVC special-shaped extruder, PVC special-shaped machine



Main Technical Parameters

Model Max width(mm) Extruder model Motor power(kw) Max capacity(kg/h)
YF180 180 SJSZ51/105 22 120
YF240 300 SJSZ65/132 37 260
YF600 600 SJSZ80/156 55 400
YF800 800 SJSZ92/188 90 650

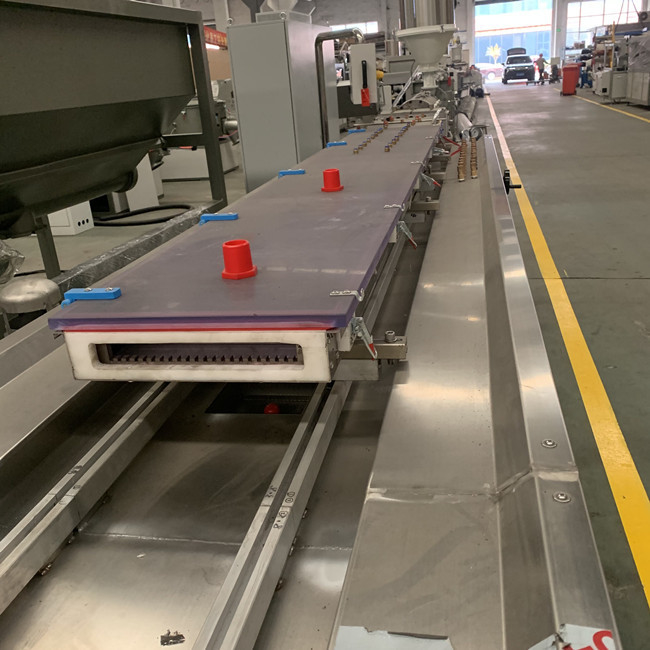

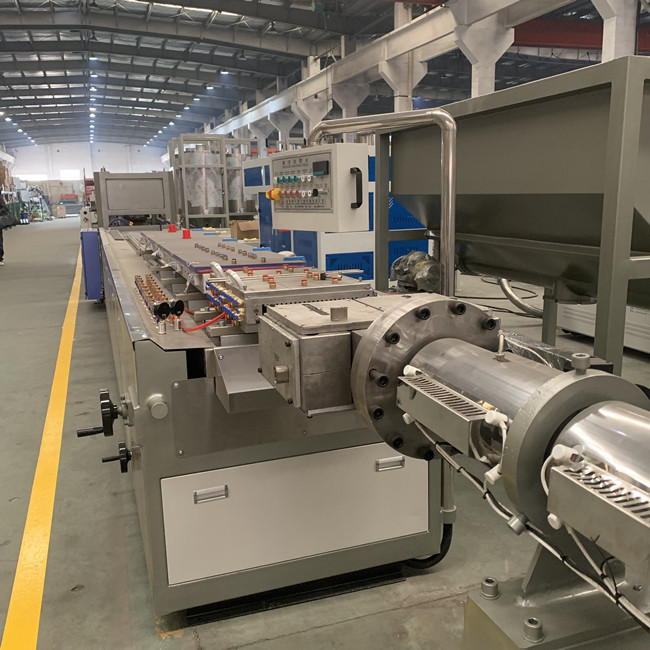

Product Pictures

4m/Min Pvc Ceiling Wall Panel Manufacturing Machine 37kw Motor 04m/Min Pvc Ceiling Wall Panel Manufacturing Machine 37kw Motor 14m/Min Pvc Ceiling Wall Panel Manufacturing Machine 37kw Motor 24m/Min Pvc Ceiling Wall Panel Manufacturing Machine 37kw Motor 34m/Min Pvc Ceiling Wall Panel Manufacturing Machine 37kw Motor 4
