Product Details:

Place of Origin: China
Brand Name: FRIEND
Certification: CE
Model Number: HK1000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $ 10000 - 50000
Packaging Details: This machine will be packed by film or standard wooden case
Delivery Time: 30 days after pay
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Plastic Double Shaft Shredder Machine Color: Blue Or Customized
Material: PE,PP,PVC Capacity: 800 - 1500 Kg / H
Power: 37 + 37 Kw Voltage: 380V 50HZ Or Customized
Machinery Test Report: Provided Condition: New
Weight: 4800 Kg Warranty: 1 Year
High Light:

Agglomerator Densifier plastic granules machine

,

Agglomerator Densifier granules making machine

,

1500kg/h plastic film densifier

Product Description

Waste Plastic Fiim Agglometor Densifier Machine/Plastic Recycled Granules Machine



Features

1. Optimize the fully enclosed sound insulation structure to ensure low noise level during operation.

2. It is equipped with current relay, motor overload protector and various safety devices to ensure safe operation.

3. The cutting tool is made of high-quality steel with good wear resistance and high rigidity.

4. Cyclone dust collector can effectively remove the air in regrinding, which is convenient for material collection.



Details

1. When waste plastic is supplied into the chamber of the machine, it will be cut into smaller pieces due to the crushing function of rotating knife and fixed knife.

2. In the crushing process, the material and container wall that absorb a lot of heat from the friction movement of the crushed material will enter the semi plasticized state. Due to plasticization, particles adhere to each other.

3. Spray the prepared cold water into the crushed material before it completely sticks together. The water will evaporate rapidly and the surface temperature of the crushed material will drop rapidly. Therefore, the crushed material will become small particles.

4. In the crushing process, by putting the colorant into the container, it is easy to identify particles of different sizes and color them.



Application

Agglomerator can directly recycle the waste plastic films and other products less than 2mm wall thickness into granules. It is suitable to agglomerate the waste products or films made of soft PVC, HDPE, LDPE, PP and other thermo plastics. When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the material will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization.



Characteristics

1. Recycle the waste and leftover materials of various soft plastic films, bags, wires, tapes, sheets and pipes such as polyvinyl chloride, high-density polyethylene and low-density linear polyethylene, and recycle them.

2. Grinding, mixing and dyeing can be completed at one time.

3. Low temperature granulation basically does not damage the molecular structure and physical properties of the material.



Main Technical Parameters

Mould GSL-100 GSL-300 GSL-450 GSL-800
Volume(L) 100 300 450 800
Effective volume(L) 75 200 350 550
QTY of rotary blade 2 2 2 4
QTY of fixed blade 6 6 8 8
Speed(rpm) 1050 950 950 760
Power(kw) 37 55 75 110
Capacity(t/day) 2.4 6 8 12
Weight(kg) 800 1000 1200 1500
Size(m) 1.7*0.75*1.5 2*1.1*1.8 2.35*1.25*1.95 2.6*1.4*2.3

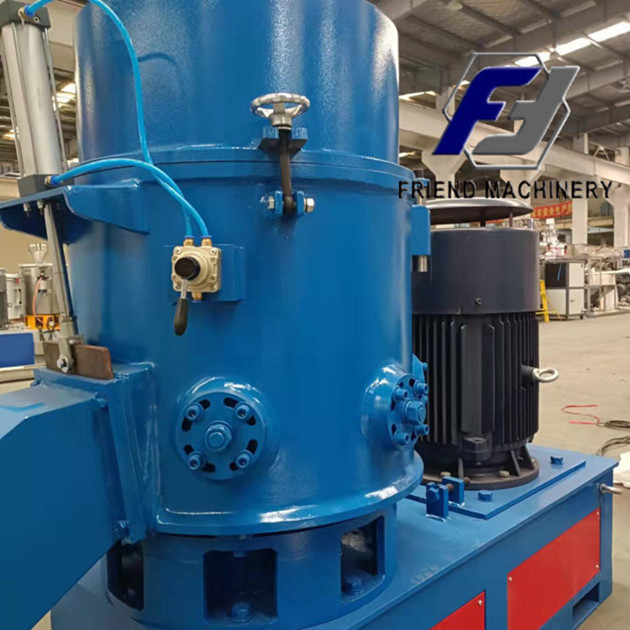

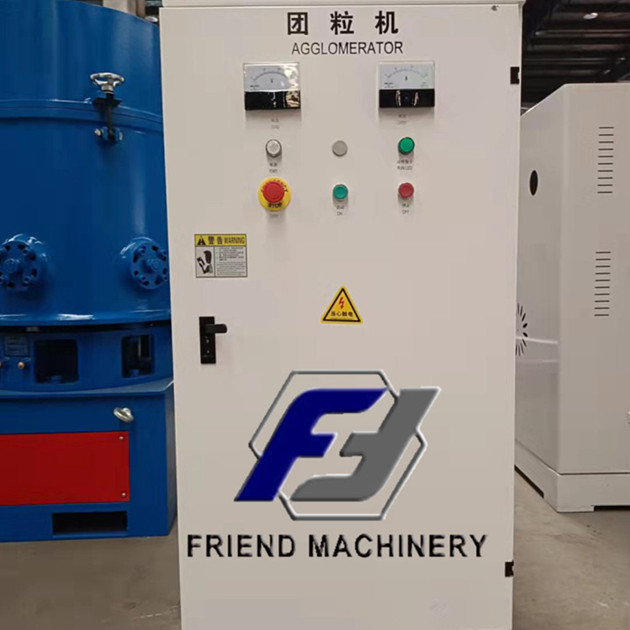

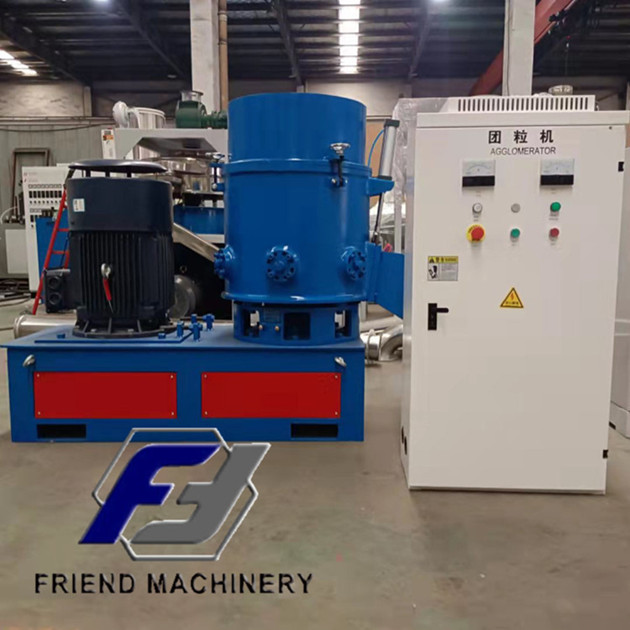

Product Pictures

Waste Plastic Film Agglomerator Densifier Plastic Granules Machine 0Waste Plastic Film Agglomerator Densifier Plastic Granules Machine 1Waste Plastic Film Agglomerator Densifier Plastic Granules Machine 2
