ABS PLA 3mm 3D ABS Printer Filament Machine High Accuracy

Minimum Order Quantity : 1 set Price : USD 9000-29000 per set
Packaging Details : standard wooden case Delivery Time : 35 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: China, Jiangsu Brand Name: Friend Machinery
Certification: CE ISO SGS Model Number: FLD-25, FLD-35A, FLD-35B, FLD-45

Detail Information

Screw Design: Single-screw Condition: New
L/D: 28:1 Voltage: Can Be Customized
Plastic Processed: ABS,PP,PLA,PE,ABS/PLA Application: Filament
Capacity: 20-25kg/h Type: 3D Printer Filament Extruder/ Extruding Machine
High Light:

3mm ABS printer filament machine

,

automatic ABS printer filament machine

,

3D automatic plastic filament extruder

Product Description

ABS PLA 3mm ±0.02mm 3D Printer Filament Machine Plastic Extrusion Line



Feature

The 3D printer filament production line can be heated to 400 ℃, which is suitable for various 3D printer filament materials, such as ABS, PLA, PA, PC, PETG, peek, etc.

The filament production line of 3D printer is controlled by temperature control system and closed-loop feedback function, and the accuracy tolerance can be controlled within ± 0.02mm.

The 3D printer filament production line has an on-line laser detector and an on-line storage system to ensure that it will not stop when replacing the spool.



Details

FLD35A 3D printer filament extrusion production line can produce 3D printer filaments of TPU, PLA, ABS, PETG, PC, PA, hips and other materials.

The 3D printer filament extrusion production line adopts a single screw extruder with specific compression ratio, which can be used for various raw materials. The production line adopts PLC control system, and the filament accuracy is automatically controlled through PID closed loop.



Advantages

3D printing filament extruder production line, which can adjust the screw structure to produce 3D printing filaments of ABS / PLA materials. The accuracy of printing filament shall be controlled within ± 0.03mm. The production line can ideally process 1.75mm and 3mm ABS / PLA printing filaments. The screws are easy to remove and clean, so it is easy to change the color of the printed filament. The water tank has two parts, one for hot water and the other for cold water, so the roundness of the printed filament is easy to control.



Main Technical Parameter

Model Power(kw) Diameter(mm) Capacity(kg/h) Tolerance(mm) Material
FLD-20 2 1.75-3 2 0.03 PLA ABS HIPS PA PET
FLD-35 4 1.75-3 15 0.02 PLA ABS HIPS PA PET
FLD-45 7.5 1.75-3 30 0.02 PLA ABS HIPS PA PET
FLD-65 15 1.75-3 50 0.02 PLA ABS HIPS PA PET

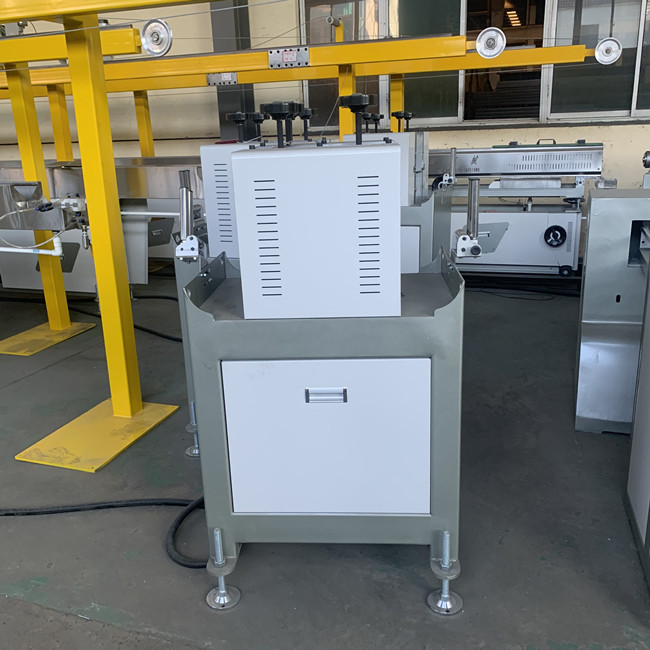

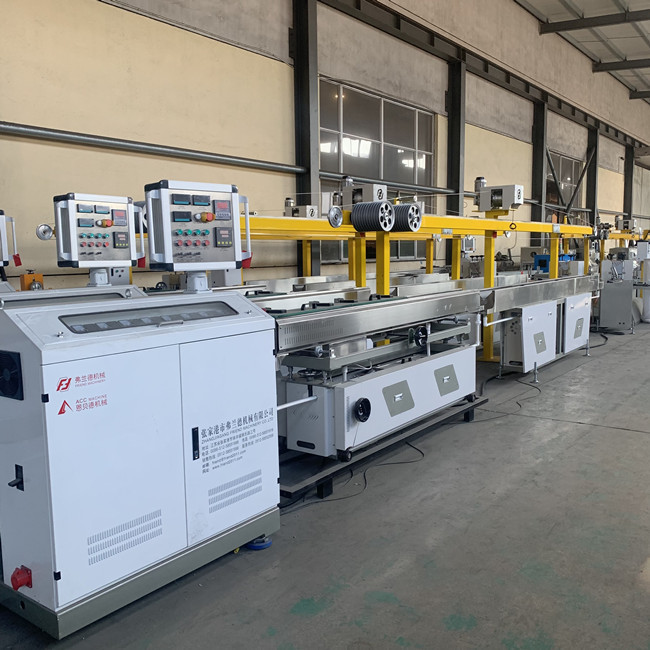

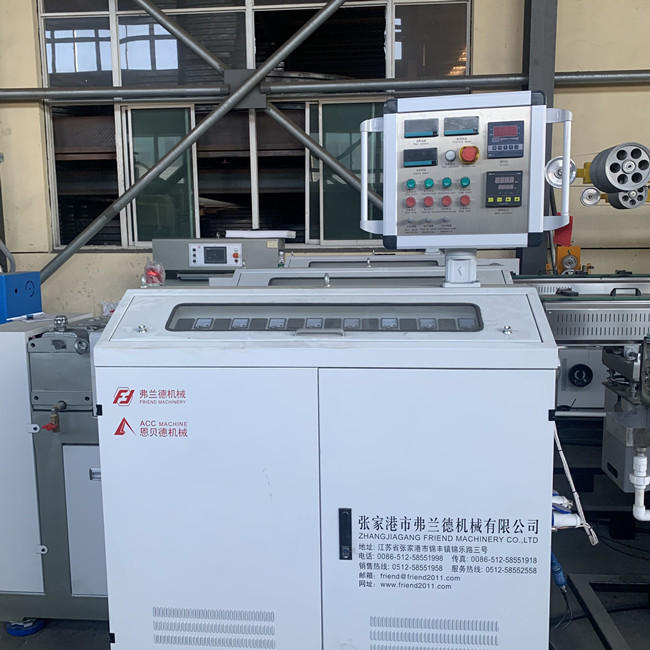

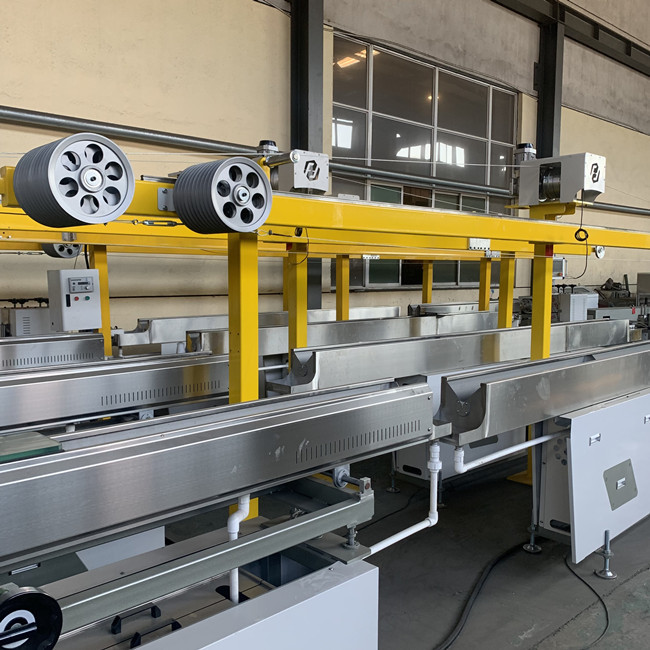

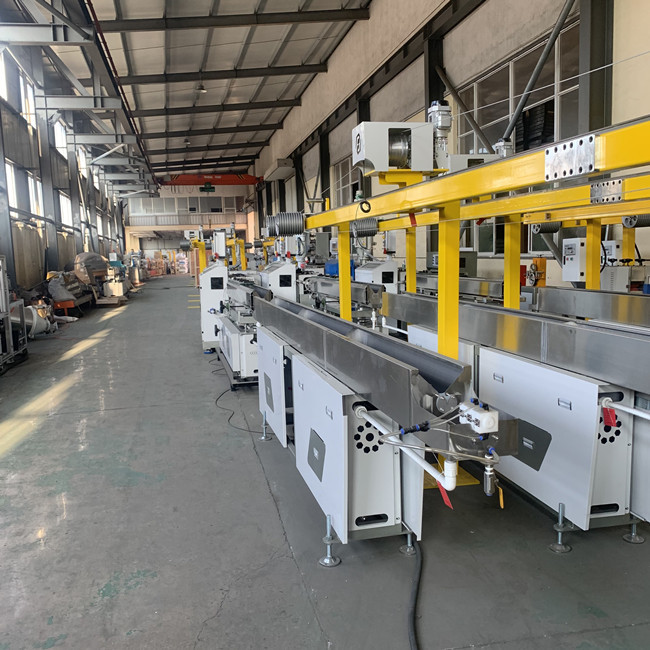

Product Pictures

ABS PLA 3mm 3D ABS Printer Filament Machine High Accuracy 0ABS PLA 3mm 3D ABS Printer Filament Machine High Accuracy 1ABS PLA 3mm 3D ABS Printer Filament Machine High Accuracy 2ABS PLA 3mm 3D ABS Printer Filament Machine High Accuracy 3ABS PLA 3mm 3D ABS Printer Filament Machine High Accuracy 4
