10mm Wall Thickness PVC Crusher Machine 1300kg/H Low Noise

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : Standard wooden package. Delivery Time : 35 working days
Place of Origin: JIANGSU Brand Name: FRIEND
Certification: CE Model Number: FLD

Detail Information

Motor Power: 15~55 Kw Blade Material: SKD-11
Core Components: Motor,PLC Output: 300-1300kg/h
Motor Brand: Siemens Beide Machinery Test Report: Provided
Wall Thickness: 10 Mm Warranty: 1year
High Light:

PLC control PVC crusher machine


10mm thickness PVC crusher machine


PLC waste plastic crushing machine

Product Description

15-55kw PP PE PC PA PET material plastic recycling machine plastic crusher machine



Plastic crusher is used to crush all kinds of plastics and rubber, such as plastic profiles, pipes, bars, wires, films and waste rubber products. Particles can be directly used in extruders or injection molding, and can also be used for basic granulation recovery. We provide you with three types of crushers, claw blade, sheet blade and flat blade, which can be used to crush more than 30 plastics with different hardness and softness. And the output size can be selected through the screen.



1.Low noise, low energy consumption
2.Unique power design, detachable, and convenient for cleaning, maintenance and service

3.PLC program control, safe and reliable utilization


Suitable Material

1. PET bottle, drink bottle label, bottle cap
2. PE film, agricultural film, bag, PE pipe, water pipe, drainage pipe
3. PP woven bag, PP water drum, PP cup, PP film, sheet, pallet, basket
4. LDPE/HDPE film, sheet, flake, lump, board
5. PVC pipe, profile, window frame, door frame, soft PVC door curtain,Wood plastic window/door
6. PC/ABS water drum
7. Rubber tyre, rubber/plastic material from injection mold
8. TV shell, keyboard, mouse, toys, torch, file folder, brochure shelf, canvas, coat hanger, bumper bar, gas tank
9. Fiber, coconut fiber, jute fiber,Non-woven fabric,Nylon
10. Leather, artificial leather, leather shoes, leather clothes, leather hand bags



1. It adopts PLC control system, automatic overload protection and auto reverse switch

2. Good shaft structure design, low noise, blades easy changeable

3. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation

4. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.


Main Technical Parameter

Model 600 800 1000 1200A 1200B 1200C 1500
Shredding Chamber(mm) 600*575 800*600 1000*600 1200*600 1200*770 1200*770 1500*770
Blades Diameter(mm) 300 300 300 300 430 430 430
Shaft Numbers(pcs) 2 2 2 2 2 2 2
Speed(rpm) 18 18 18 18 19 19 19
Motor Power(kw) 7.5*2 15*2 18.5*2 22*2 15*2 30*2 45*2
Capacity(kg/h) 300 500 800 1000 500-800 1500-2000 2500

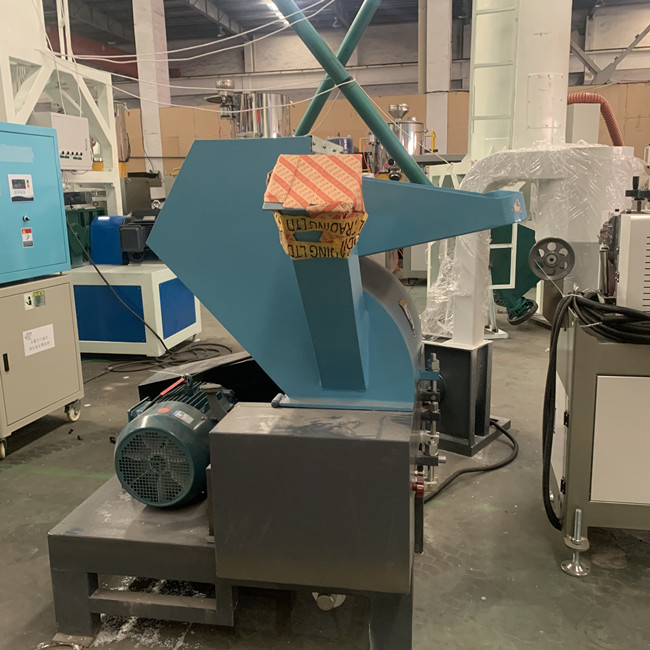

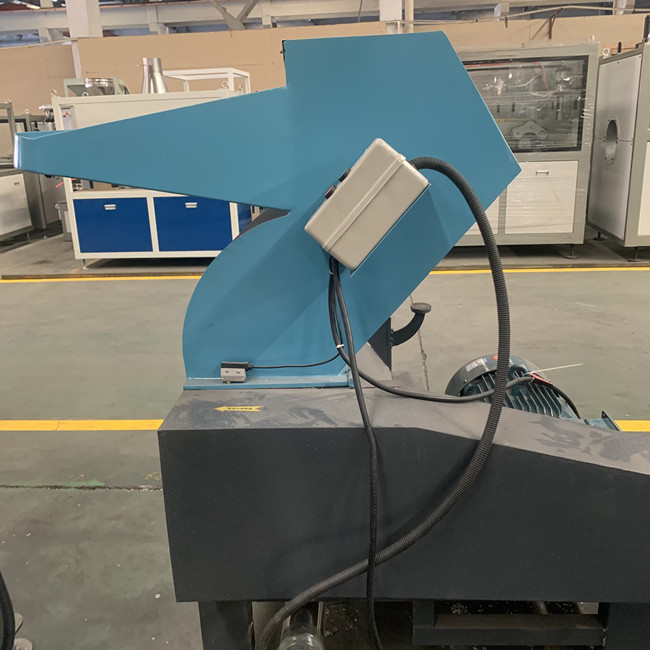

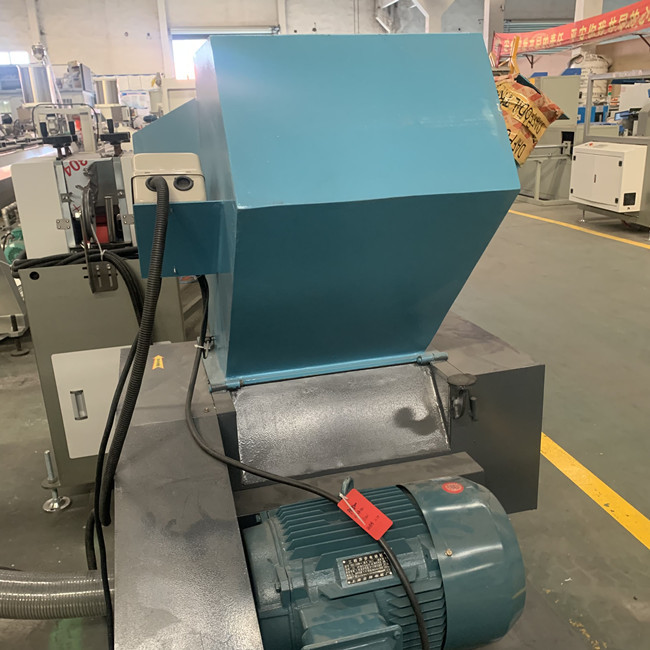

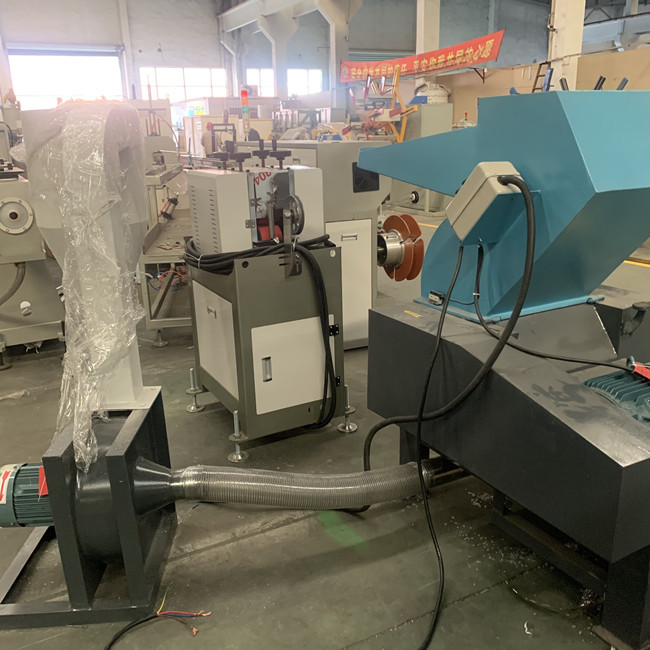

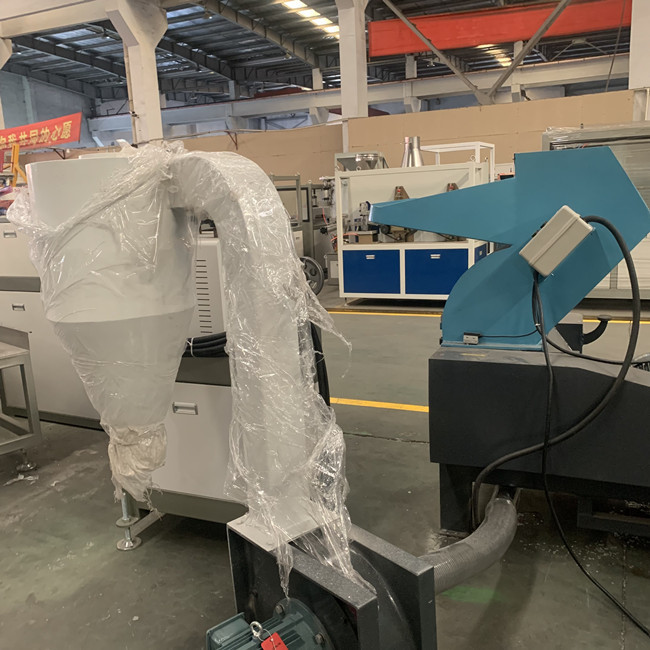

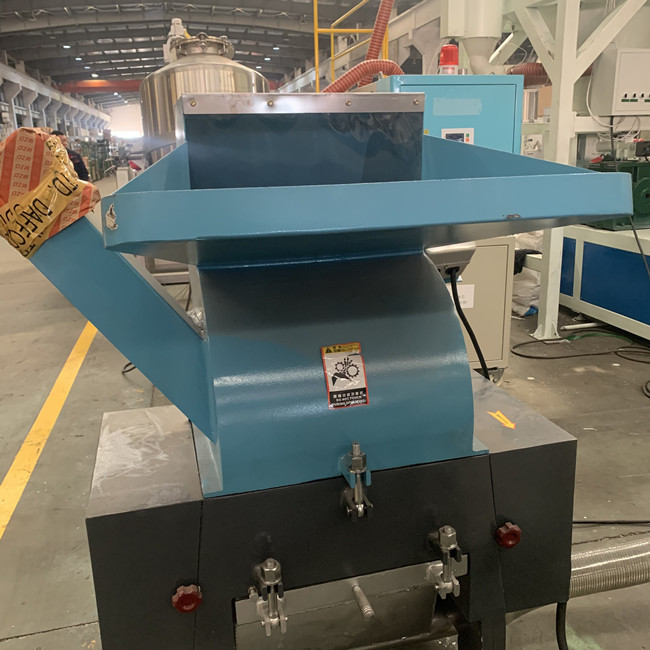

Product Pictures

10mm Wall Thickness PVC Crusher Machine 1300kg/H Low Noise 010mm Wall Thickness PVC Crusher Machine 1300kg/H Low Noise 110mm Wall Thickness PVC Crusher Machine 1300kg/H Low Noise 210mm Wall Thickness PVC Crusher Machine 1300kg/H Low Noise 310mm Wall Thickness PVC Crusher Machine 1300kg/H Low Noise 410mm Wall Thickness PVC Crusher Machine 1300kg/H Low Noise 5
