Professional Pvc Grinder Machine , Plastic Milling Machine 300kg/H Capacity
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
| Minimum Order Quantity : | 1 set | Price : | negotiation |
|---|---|---|---|
| Packaging Details : | Standard wooden package | Supply Ability : | 20 sets per month |
| Place of Origin: | JIANGSU | Brand Name: | FRIEND |
|---|---|---|---|
| Certification: | CE | Model Number: | SMP-500 |
|
Detail Information |
|||
| Raw Material: | PVC PE PP | Motor Power: | 45 Kw |
|---|---|---|---|
| Application: | Waste Plastic Recycling | Capacity: | 300 Kg/h |
| Certification: | CE | Product Name: | Plastic Milling Machine |
| Video Outgoing Inspection: | Provided | Warranty: | 1year |
| High Light: | PE industrial pulverizer machine,300kg industrial pulverizer machine,300kg PE pulverizer machine |
||
Product Description
PP PVC PE Plastic Pulverizer Machine Plastic Recycling Machine Plastic Milling Machine
Details
1.This type can grind all kinds Hard & Soft materials into 10-80 mesh powders in normal temperature.
2.A widely use range, PVC/PE/PP/ABS/PS/PA/PC Materials.
3.This machine has a much higher output, 2 or 3 times than normal miller, equip with dust collector. An ideal energy saving machine in plastic industries.

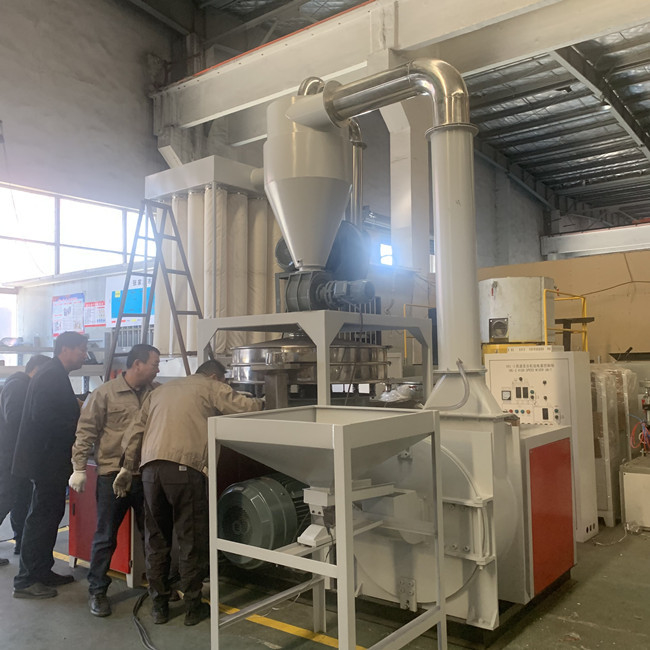

4.This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling ,high-efficiency dust collector system.
5.The sword adopts imported stainless steel, durable, can work continously.
6.Knives can be adjusted easily, easily maintained and controlled.
Advantages
1. Simple adjustment of cutting gap
2. Fast and easy replacement and adjustment of discs
3. Easy temperature control
4. Low drive power, cost effective operation
5. High throughput
6. Long service life of the disc when sharpened
7. Low residence time means lower thermal stress on the process material
Features
1. Safe and simple adjustment of cutting gap
2. Low energy consumption and high throughput
3. Innovative and energy efficient design
4. Easy to maintain and control
5. Wide range of accessories
6. Regrinding coarse powder automatically
7. Dual cooling system
Main Technical Parameters
| Model | SMF-400 | SMF-610 | SMF-800 |
| Blade Disc Size(mm) | 400 | 610 | 800 |
| Blade DIsc Quantity(pcs) | 2 | 2 | 2 |
| Main Motor Power(kw) | 30 | 45 | 55 |
| Blower Power(kw) | 3 | 5.5 | 7.5 |
| Flow Valve Power(kw) | 0.75 | 0.75 | 1.1 |
| Powder Size(mesh) | 10-100 | 10-100 | 10-100 |
| Capacity(kg/h) |
150(PE) 80(PP) 20(PE) |
250(PE) 160(PP) 350(PE) |
350-400(PE) 200-250(PP) 500(PE) |
| Model | SMW-500 | SMW-600 | SMW-800 |
| Motor Power(kw) | 37 | 55 | 75 |
| Blow Power(kw) | 3 | 5.5 | 11 |
| Total Power(kw) | 41 | 52 | 90.5 |
| Blade Diameter(mm) | 500 | 600 | 800 |
| Feeding Material Size(mm) | Below 10mm | Below 10mm | Below 10mm |
| Output Size(mesh) | 40-80 | 40-80 | 40-80 |
| Capacity(kg/h) | 200-300 | 300-500 | 500-600 |
