120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity

120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity

Product Details:

Place of Origin: Jiangsu province,China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SMF500

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: wooden package
Delivery Time: 20 worker days
Payment Terms: L/C, T/T
Supply Ability: 70 sets per month
Get Best Price Contact Now

Detail Information

Material: PVC,PP,PE Type: Blade Type For Pvc,mill Type For Pp Pe
Certification: CE Motor Power: 20kw,30kw,37kw,45kw,55kw,75kw
Voltage: 220V,380V Or Customized Mesh Diameter: 20-120meshes
Key Selling Points: Competitive Price Capacity: 80-120kg/h,120-180kg/h,200-300kg/h,300-400kg/h,etc.
Main Shaft Speed: 3200-3700r/min Warranty: 1year
High Light:

120 meshes PVC pulverizer machine

,

120 meshes PVC Milling machine

,

water cooling PVC pulverizer machine

Product Description

PVC material plastic pulverizer machine/milling machine/grinding machine



Features

1.Low power consumption, high capacity

2.Simple structure and easy installation.

3.Host with the wind ,water circulation cooling system.

4.This Plastic pulverizer can deal with PE, LLDPE, LDPE, ABS, EVA, PET, PP etc.



Details

1.New grinding disc design, high output, strong wear resistance, life is twice that of ordinary grinding disc.
2.Using newly designed special bearings to achieve high speed
3.Easy installation and maintenance, can be cleaned by opening the door cover
4.The grinding process is fully sealed, no dust leakage
5.Fully automatic, automatic feeding, discharging and sorting
6.The adjustment of the grinding gap is simple, just use the feeler gauge and adjusting bolt to adjust
7.The main engine cooling system adopts wind and water combined cooling
8.Reasonable design, small grinding cavity cross-section, the material will be caught and ground immediately when it enters, and it will be removed quickly, avoiding the temperature and decomposition of the material, thus having higher output



Advantages

1. The capacity of this model is higher than other kind of miller.
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker and save money for clients.
4.The cover of main machine can be opened for maintain.
5.The cooling system include the water and wind cooling for the machine body.



Main Technical Parameters

Model MP-400 MP-500 MP-600 MP-800
Diameter of milling chamber(mm) 350 500 600 800
Motor power(kw) 22-30 37-45 55 75
Cooling Water cooling+natural cooling
Air blower power(kw) 3 4 5.5 7.5
Fitness of LDPE power 30 to 100 mm adjustable
Output of pulverizer(kg/h) 100-120 150-200 250-300 400
Dimension(mm) 1800*1600*3800 1900*1700*3900 1900*1500*3000 2300*1900*4100
Weight(kg) 1300 1600 1500 3200

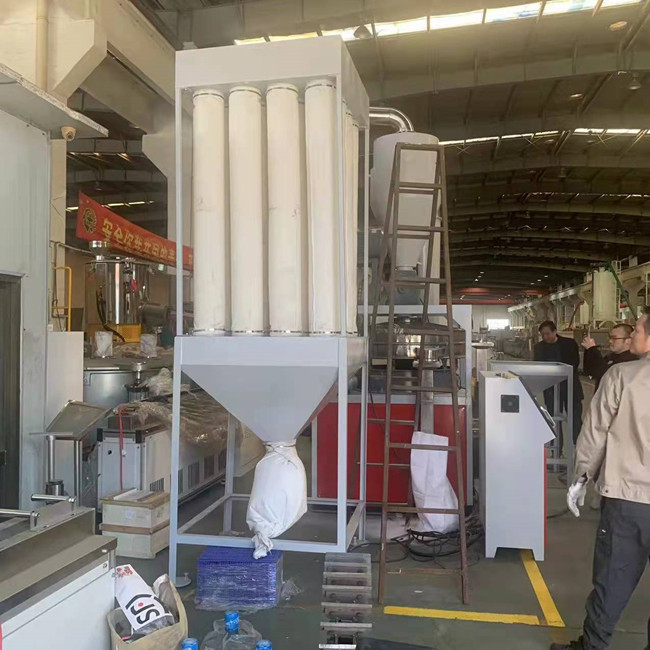

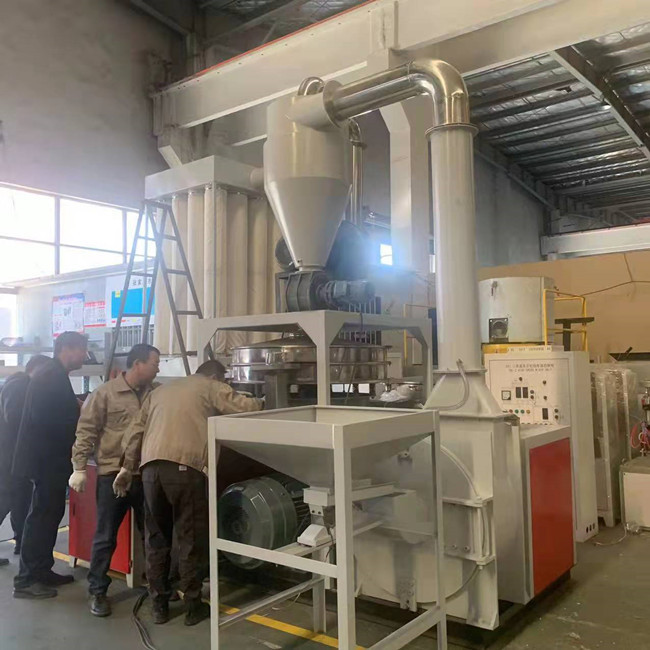

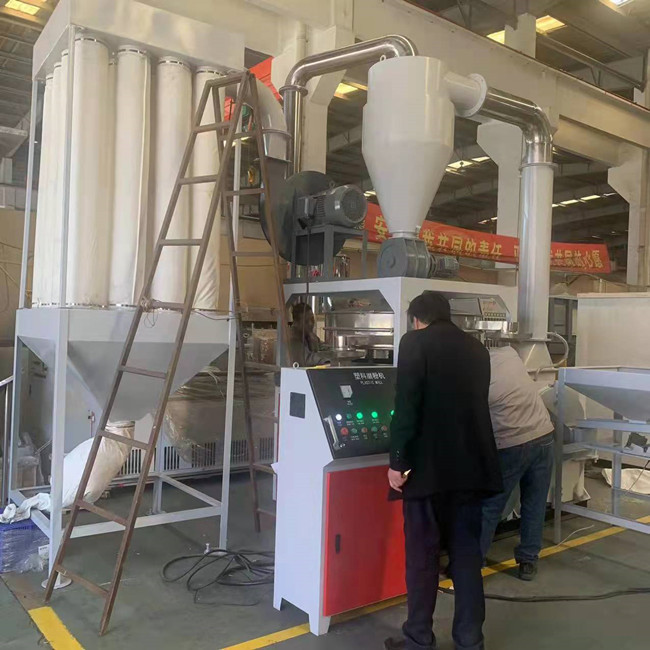

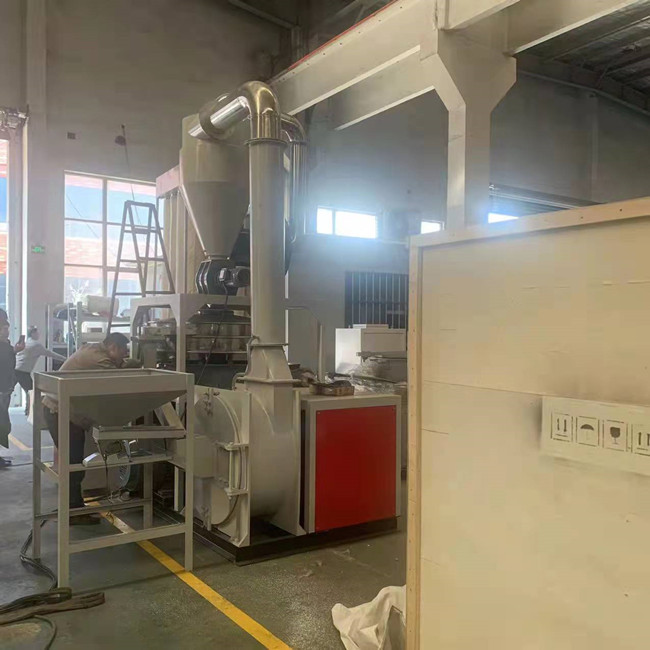

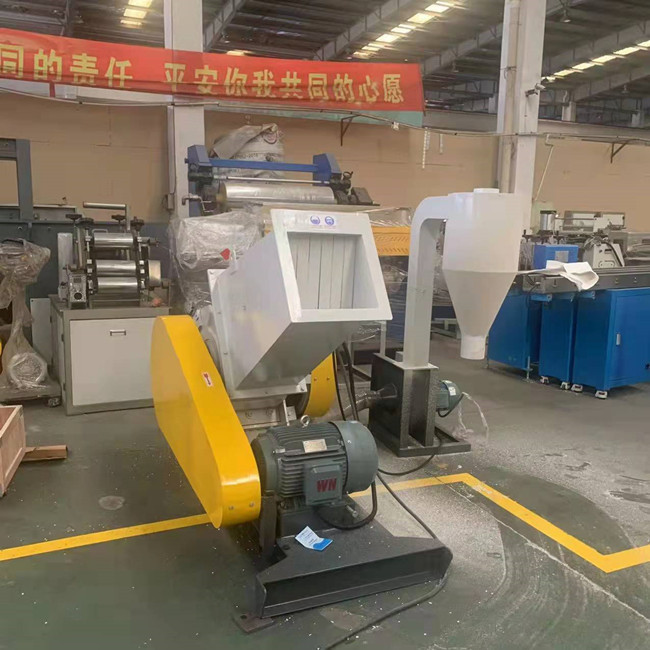

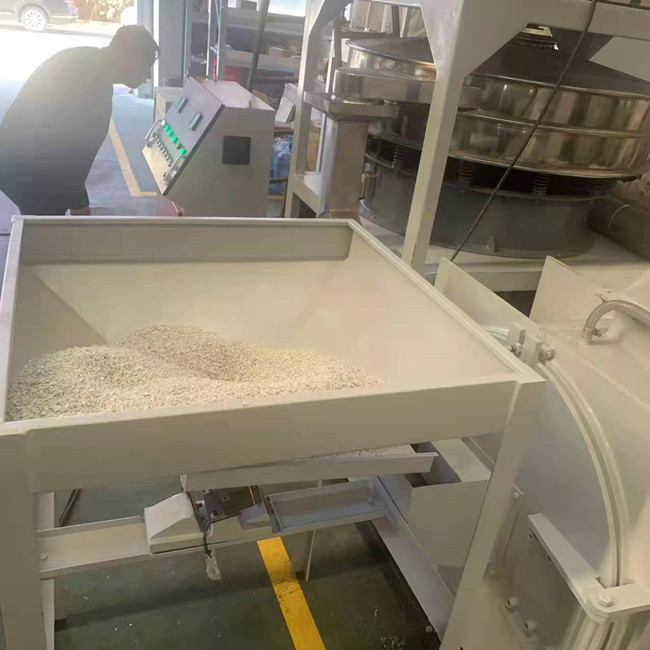

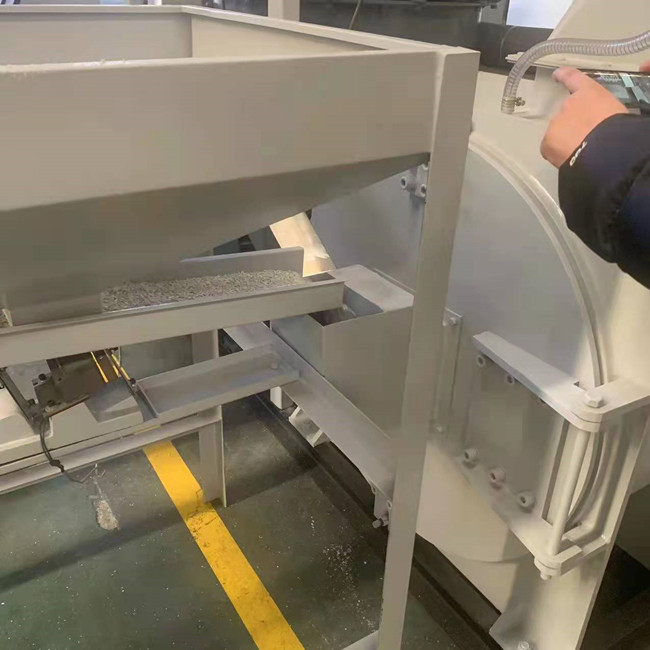

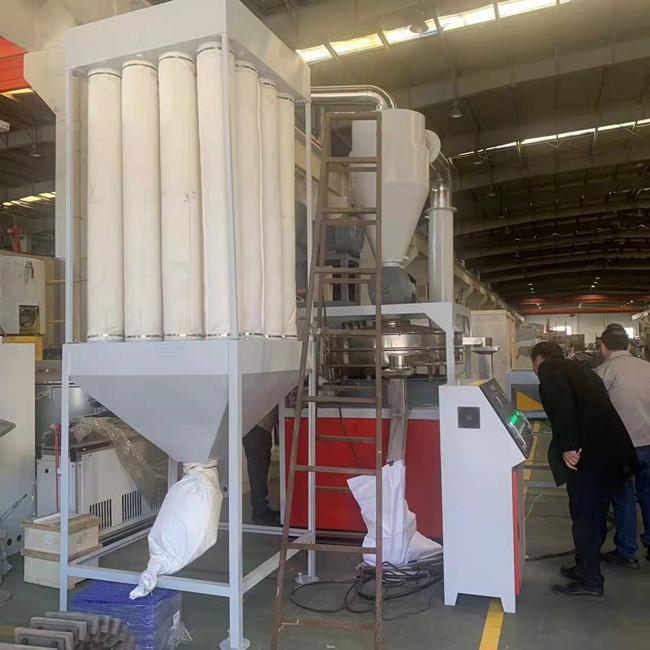

More Product Pictures

120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity 0120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity 1120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity 2120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity 3120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity 4120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity 5120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity 6120 Meshes PVC Milling Pulverizer Machine Water Cooling High Capacity 7
