TUV 25kg/H 1.75mm PLA 3D Filament Extrusion Machine

Minimum Order Quantity : 1 set Price : US 23500 $
Packaging Details : film wrapped with wooden box outer protect Delivery Time : 35 working days
Payment Terms : Western Union, L/C, T/T, MoneyGram Supply Ability : 10 sets per month
Place of Origin: CHINA Brand Name: Friend machinery
Certification: CE SGS Model Number: FLD-45A

Detail Information

Screw Diameter: 45mm L/D: 28
Tolerence: 0.02mm Material: PLA PP PE ABS TPU EVA PEEK PVA Etc.
Voltage: 380v 50Hz Capacity: 20-25kg/h
Color: Can Be Customized
High Light:

TUV 3d filament extrusion machine

,

25kg/h pla filament extruder machine

,

25kg/h 1.75mm filament extruder

Product Description

3D Printer Filament Extruder/3d Filament Plastic Extrusion Machine



With the increasing popularity of 3D printing technology, people's demand for 3D printing consumables is also growing, the demand for 3D printing consumables is also increasing. Our company has been committed to the production of 3D printing consumables since 2013, has accumulated a lot of experience and technical resources, and has successfully developed the fourth generation of products. We have co operated with many universities at home and abroad. Our customers cover most European and American countries.


1. heater: cast aluminum heater (if PEEK and other high temperature materials need to be replaced by ceramic heating).
2. reducer: Jiangyin hardened gear reducer.
3. electrical appliances: Schneider.
4. speed regulation: ABB AC variable frequency speed regulation.
5. temperature control chart: OMRON.
6. screw material: 38CrMoAlA nitriding.



Machine parts



No. Item Qty
1 Hopper Dryer 1 Set
2 SJ45/28Single Screw Plastic Extruder 1 Set
3 Die


2 Sets
4 Cooling water bath with Calibration 2 Sets
5 Laser Gauge 1 Set
6 Haul-off machine


1 set
7


Horizontal storage rack


1 set
8 Double station winder


1 set



Mode FLD-45A FLD-35A FLD-35B FLD-50A
Capacity(kg/h) 20-25 10-15 5-8 30-40
Motor power(kw) 15 7.5 5.5 15
Total length(m) 12 11 5.8 15
Filament Quantity 1 1 1 1
Diameter(mm) 1.75,2.85,3.00 1.75,2.85,3.00 1.75,2.85,3.00 1.75,2.85,3.00
Tolerance(mm) 0.02 0.02 0.03 0.02
Working Temperature(℃) 0-280(A) 0-480(B) 0-280(A) 0-480(B) 0-280(A) 0-480(B) 0-280(A) 0-480(B)
Water consumption(Mpa) 1 1 1 1.5
Air supply 0.5 0.5 0.5 0.5
Certification CE SGS TUV CE SGS TUV CE SGS TUV CE SGS TUV

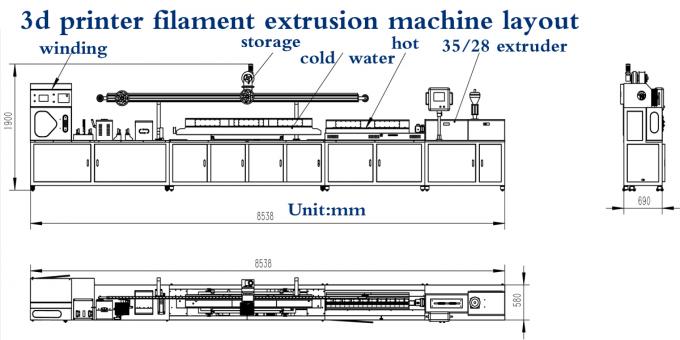

Production Flow



Hopper dryer——Single screw extruder——Die head——Water tank—— Laser measuring diameter machine—— Haul off machine—— Storage wire stand—— Winder machine

TUV 25kg/H 1.75mm PLA 3D Filament Extrusion Machine 0



its multi-advantages:



Our Laboratory 3d printer filament extrusion machines are very welcomed for


1 Big capacity compared with other suppliers who use the same model screw and motor


2 Lowest tolerance: +/- 0.03 mm. even +/- 0.02 mm.


3 Both 1.75 and 3.00mm filament diameter


4 It can process multi-materials like PLA ABS PET PA HIPS .


5 Easy operation: SIEMENS PLC full-auto controling system, lazer guage close loop control.


6 Stable quality , we have not received any negtive review from our customers


7 Oversea service, installation, staff trainning and technical support available

Laboratory 3d printer filament extrusion machines application


Laboratory 3d printer filament extrusion machines always be used for test or lab research with small capacity and low energy consumption.
This Laboratory 3d printer filament extrusion machinescan be used to plastic modification test, pipe extrusion test, filament extrusion text and granulation test with different moulds. It is an essential equipment of the chemical enterprise, scientific research institution, college and university lab.
Laboratory 3d printer filament extrusion machines also can process all kinds of plastic materials such as soft/hard propene Polymer (PP) and polystyrene(PE) coordinated with the appropriate auxiliary machine.


Laboratory 3d printer filament extrusion machines Features


1. For tube accessary machine
   This machine can be applied as striping machine which is a auxiliary in pipe production line.


2. For research laboratory or teaching
   with little capability and lower energy consuming.
   , this mini extruder is widely used in lab experiment and text.


3. For personal workshops
   Many individuals would like to established a workshop to produce pastic-related products, but you do not want to put much spending budget,         consequently you can select this machine.

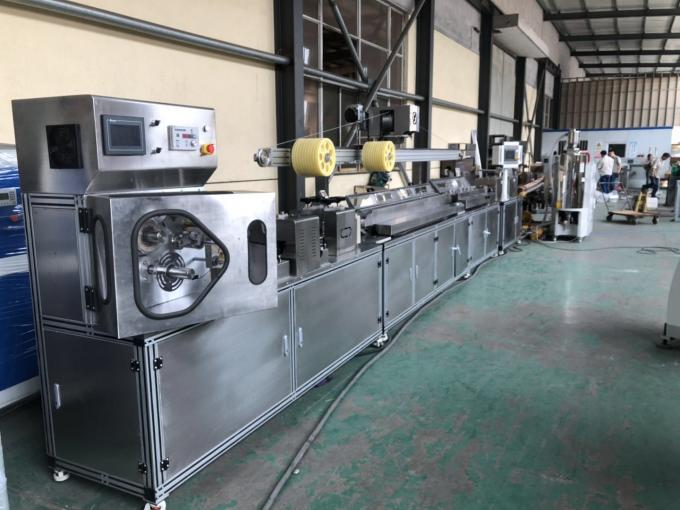

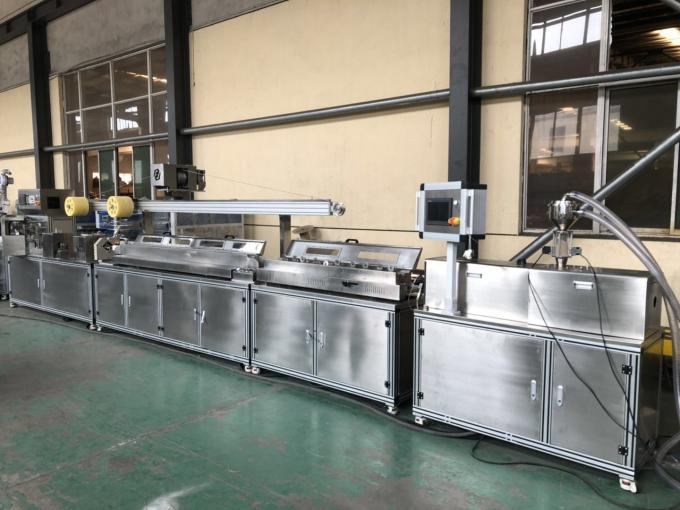

TUV 25kg/H 1.75mm PLA 3D Filament Extrusion Machine 1TUV 25kg/H 1.75mm PLA 3D Filament Extrusion Machine 2
