HDPE PPR PE PVC Plastic Pipe Extrusion Line Tube Extruder Making Machine

Minimum Order Quantity : 1 SET Price : 30000 USD PER SET
Packaging Details : STANDARD WOODEN PACKAGE Delivery Time : 30 WORKING DAYS
Supply Ability : 20 SETS PER MONTH
Place of Origin: JIANGSU, CHINA Brand Name: FRIEND
Certification: CE,SGS Model Number: SJ-65

Detail Information

Application: HDPE PIPE MAKING Motor: 37 Kw
Motor Brand: Siemens Beide Control: Transducer
Transducer: ABB
High Light:

PE PVC Plastic Pipe Extrusion Line

,

HDPE Pipe Tube Extruder

,

PPR Plastic Pipe Making Machine

Product Description

HDPE PPR PE PP PVC Plastic Pipe Tube Extruder Making Machine Extrusion Line



PE series plastic pipe extrusion / making / production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. This PE PP PPR PE-RT pipe making machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products. The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, ten-claw type, twelve-claw type, etc. Scraps free cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc, it can also produce PP, PE, ABS, PPR, PEX, silicon core pipe and pipe material of other material. The planetary cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.





PE/HDPE pipe machine

Extruder SJ45/30 SJ50/30 SJ65/33 SJ75/33 SJ90/33 SJ120/33
Main motor 15KW 18.5KW 30KW 75KW 185KW 280KW
Heating power 8KW 10KW 20KW 25KW 50KW 80KW
pipe diameter 16-40mm 16-63mm 20-110mm 110-250mm 160-400mm 315-630mm
Output 30-50kg/h 50-60kg/h 60-120kg/h 80-180kg/h 200-350kg/h 300-550kg/h



Machine configuration



No. Machine Qty
1 Feeder 1set
2 single screw extruder 1set
3 Mould 1set
4 Vacuum Calibration tank 1set
5 Spraying cooling tank 1set
6 Haul off 1set
7 Cutting machine 1set
8 Pipe stacker 1set



Service



Pre-sales service:

> Introducing in detail features and application of the products to customer

> Selecting economical and practical machine & equipment for customer

> Providing operation data of the related machine & equipment

> Providing means of trial performance for customer

Sales service:

> Recommending engineering conditions required for installation of the machine & equipment

> Communicating in time the manufacturing progress of the machine with user

> Providing assistance in technical conditions, screw combination and barrel disposition needed for product

After-sales service:

> Providing on-the-spot technical assistance in installation, commission and training

> Filling in detail customer’s information

> Providing long-term maintenance service and spare parts

> Giving technical support to customer for developing new product

> Providing free maintenance for a year

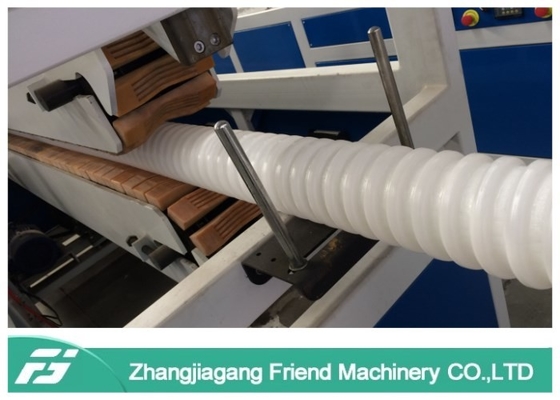

Machine pictures

HDPE PPR PE PVC Plastic Pipe Extrusion Line Tube Extruder Making Machine 0



HDPE PPR PE PVC Plastic Pipe Extrusion Line Tube Extruder Making Machine 1



HDPE PPR PE PVC Plastic Pipe Extrusion Line Tube Extruder Making Machine 2
