180kg/H Hdpe Pipe Extruder Production Line Extrusion Machine Vacuum Forming

Minimum Order Quantity :	one set	Price :	negotiation
Packaging Details :	Film package,if wooden package needs extra charge	Delivery Time :	30 days
Payment Terms :	L/C, T/T	Supply Ability :	20 sets per month

Place of Origin:	China	Brand Name:	Friend
Certification:	CE	Model Number:	SJ single screw extruder

Detail Information
Material:	PE,HDPE,PPR	Application:	Pipe
Pipe Diameter:	13-630mm	Voltage:	380V,50HZ Or Customized
Control:	PLC+touch Screen	Capacity:	80-180kg/h
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Forming:	Vcauum
High Light:	180kg/h Hdpe Pipe Extruder , Vacuum forming Hdpe Pipe Extruder , 180kg/h Hdpe Pipe Extrusion Machine

Product Description

Hdpe Pipe Extruder Extrusion Machine Production Line

Flow chart of PE pipe extrusion line :
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder
→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)

PE pipe extrusion line application description:
This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.

Characteristics PE pipe extrusion line :
· Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h
· Diameter: from 16 to 800mm
· Adopts reasonable design, absorbing safe producing technology, acquiring CE & ISO certificate

Application

Small diameter PE pipe extruder is mainly used to produce agricultural irrigation pipe, drainage pipe, gas pipe, water supply pipe, cable pipe, etc. The unit consists of single screw extruder, die head, vacuum cooling tank, tractor, planetary (no chip / no chip / no dust cutting machine), cutting machine, winding machine, stacker, etc. Our production line is equipped with weight measuring device and ultrasonic device} thickness indicator. It can provide turnkey solutions, such as laser printer, crusher, crusher, chiller, air compressor, etc., to realize the automatic production of high-grade pipes.

Components

1) auto feeding loader with hopper drier

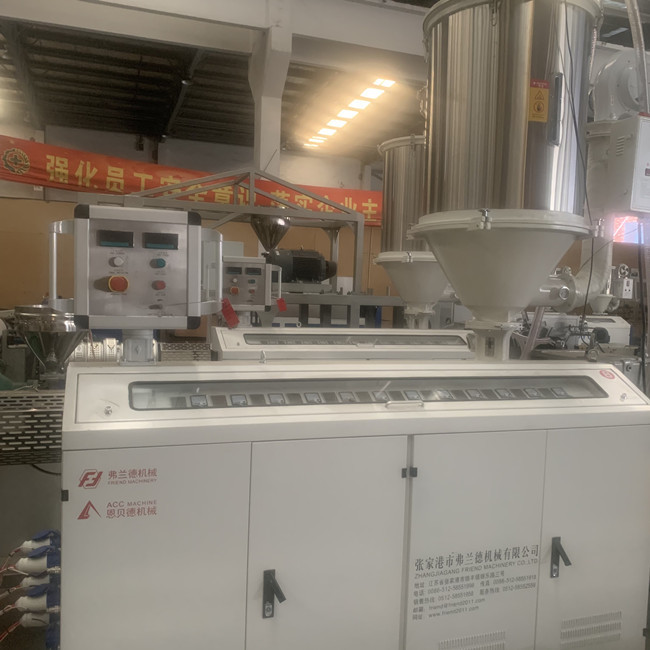

2)sj65/30 single screw extruder

3)die head and core bar,mouth molds

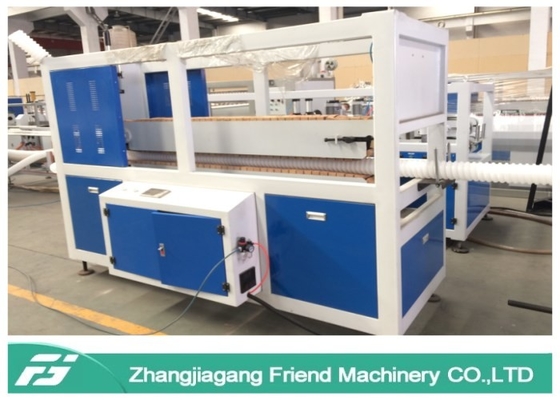

4)corrugator forming machine with forming mold

5)Double station rewinder

6)Auto wire device(optional)

Main Technical Parameters

Pipe range(mm)	16-63	20-110	75-160	90-250	110-315	160-450	315-630	500-800
Extruder	65/30	65/33	75/30	75/33	90/33	90/33	120/33	150/33
Motor power(kw)	30/37	55/75	75/90	90/110	132	160	280	335
Capacity(kg/h)	60-130	100-150	200-300	220-350	300-400	350-450	500-600	700-900
Max speed(m/min)	15	10	8	6	3	1.2	1.0	0.8

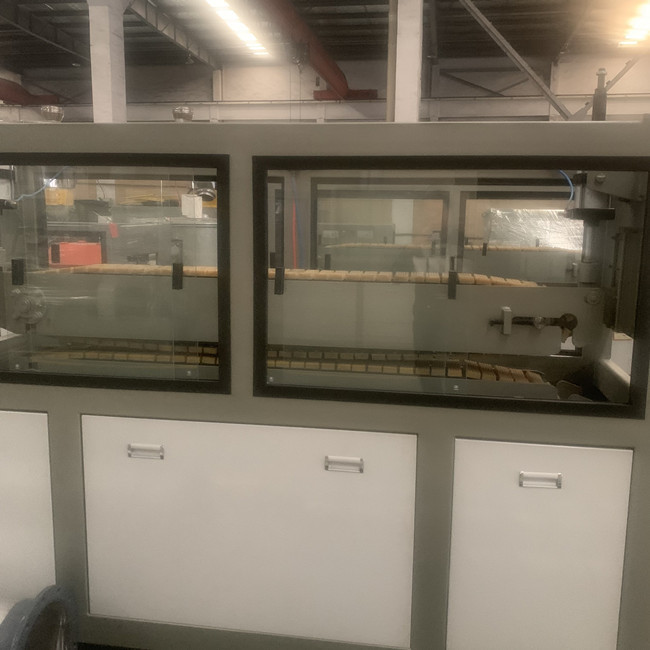

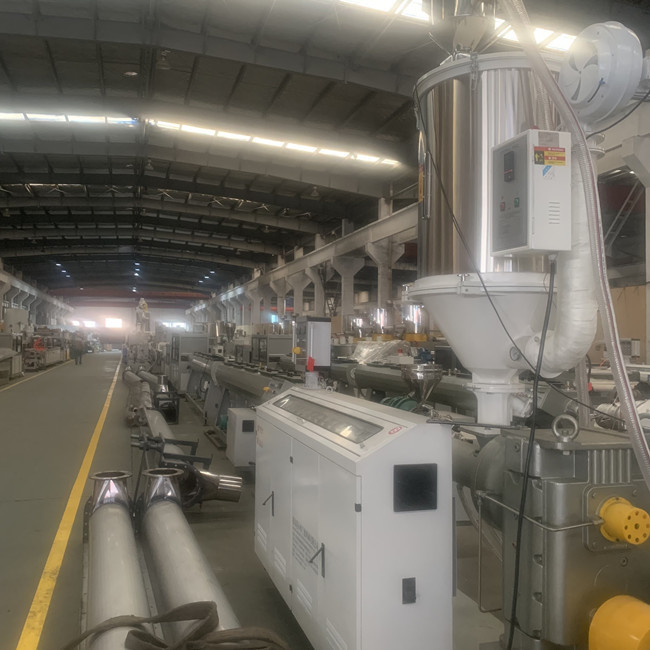

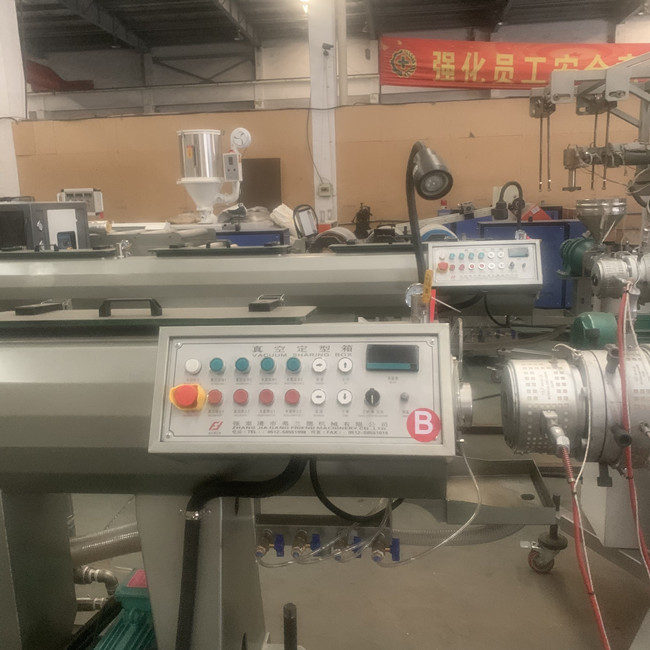

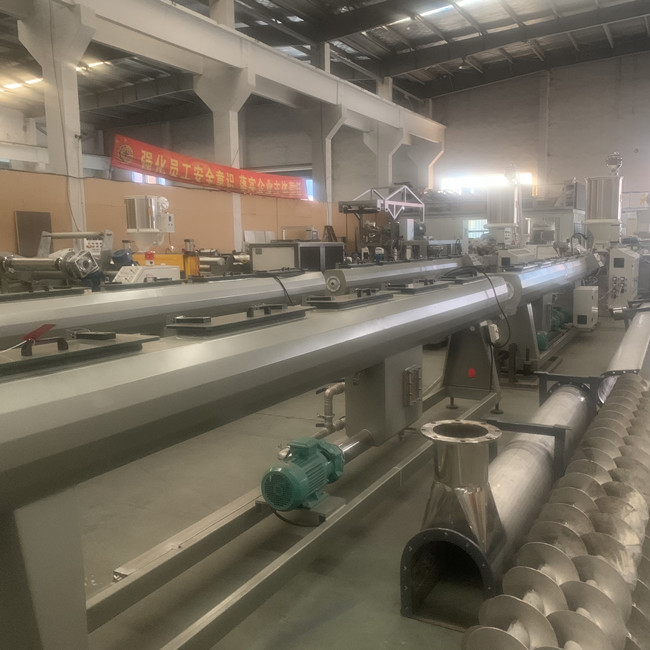

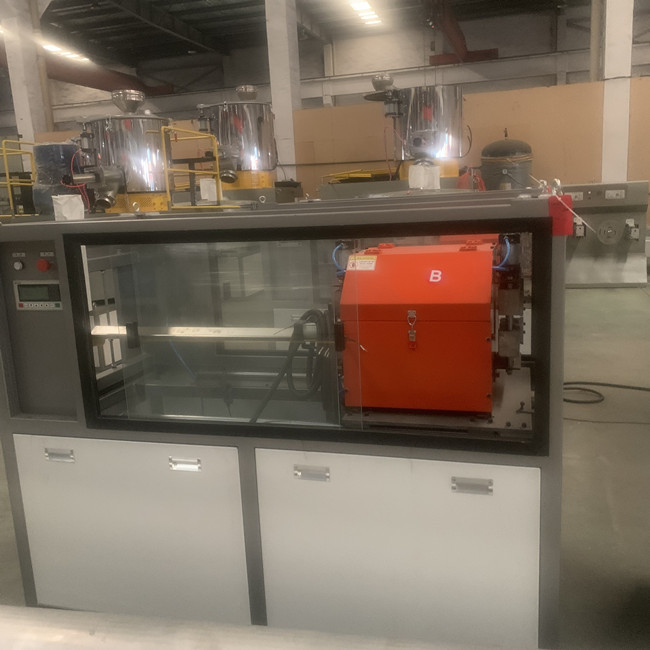

More Product Pictures
