POM Wear Resistant Hdpe Pipe Manufacturing Machines 15 - 20kg/H Capacity

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film packing and wooden case Delivery Time : 30 making days
Supply Ability : 20 sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: CE,SGS,UV Model Number: SJ45

Detail Information

Material: POM Resin Capacity: 15-20kg/h
Motor: Siemens Brand In China Inverter: Holip
Warranty: 1 Year Color: Black
High Light:

Wear Resistant PE Pipe Extrusion Line

,

20kg/H Hdpe Pipe Manufacturing Machines

,

20kg/H POM pipe extruder

Product Description

POM Wear-Resistant Plastic Pipe Hose Tube Production Extrusion Line



This PE Foam Pipe/Tube/Rod Extruder Machine can produce EPE foam tube/pipe/rod/stick, which is a kind of new type foaming material and widely used as the air conditioner tube sheath, pool noodle, toy guardrail, etc due to its good foaming, elasticity and heat preservation character.

  • Single screw extruder Single screw extruder is design especially for PE material. with different capacity for choice.
  • Vacuum calibration tank It is 6m length. with vacuum pump and water pump.
  • Water spray cooling tank It is 6m, which is for cooling PE pipes.
  • Haul-offs Caterpillars haul-offs, with KAF reducers, which works more stably
  • Cutting machine It is adopts planetary cutting , which is suitable to cut PE pipes. with different diameter clamps.



Machine Parameter:

No Model Details
1 Hopper Dryer
  • Material : Stainless Steel

Heating Power : 6KW

  • Fan Power : 0.37KW
  • Hopper Volume : 150KG/H



2

SJ30

Single Screw Plastic Extruder

l Screw Diameter :¢30mm

l Ratio of L/D : 28:1

l Screw Maximum Rotating Speed : 15-150Rpm

l Motor Power : 7.5KW

l Screw and Barrel Material : 38CrMoAlA Nitrogen Treatment

l Depth of Nitrogen Treatment: 0.4-0.7

l Screw Straightness : <0.015 mm

l Hardness of Screw : HV800-1000

l Heating Method : Casting Aluminum Heater

l Heating Zones : 4Periods(Screw Barrel 3periods,Head Piece 1 Periods)

l Heating Power:12KW

l Cooling Method :Forced Air Cool

l Cooling Zones :3 periods

l Fan Motor Power : 180W*3= 0.54KW

l Electrical System : ABB Frequency Converter

l Temperature Control Meter : RKC

l Gear Box : Hard Tooth Face

l Central Height : 1000mm

l Size : 1500*1090*2127mm

l Weight : 400kg



3 Mold and Head
  • Mold Material : Steel 40Cr
  • Mold Size for OD10mm, ID 8.5mm tube Connection head material : 45# carton steel

c

4 Vacuum and Water cooling tank
  • Vacuum forming part : Length: 2m
  • Vacuum pump power : 2.2kw
  • Material: stainless steel
  • Heating device for good quality pipe forming
  • Water cooling tank parts :
  • Length : 1m
  • Material : stainless steel
  • Machine structure material : Q235 steel
  • (height and direction adjustable)
  • Size : 3000*1120*310



5



Haul off with cutting device
  • Haul off speed : 1-15m/min or required
  • Driving motor : 0.55kw*2
  • Cutter motor type : servo motor
  • Motor power: 1.5kw
  • Cutter blade material : high quality tooling steel
  • Final tube cutting length could be adjusted
  • Cutting tube number could be seen in PLC system
  • Control system ( PLC control system )
  • Size : 1500*900*850

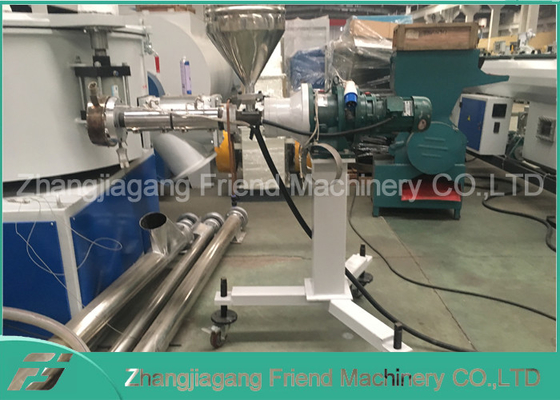

POM Wear Resistant Hdpe Pipe Manufacturing Machines 15 - 20kg/H Capacity 0



Pre-sales service:

> Introducing in detail features and application of the products to customer

> Selecting economical and practical machine & equipment for customer

> Providing operation data of the related machine & equipment

> Providing means of trial performance for customer

Sales service:

> Recommending engineering conditions required for installation of the machine & equipment

> Communicating in time the manufacturing progress of the machine with user

> Providing assistance in technical conditions, screw combination and barrel disposition needed for product

After-sales service:

> Providing on-the-spot technical assistance in installation, commission and training

> Filling in detail customer’s information

> Providing long-term maintenance service and spare parts

> Giving technical support to customer for developing new product

> Providing free maintenance for a year
