Plastic Upvc Wpc Plastic Extruder Sheet Production Line Pvc Foam Board Machine

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Wooden package Delivery Time : 7 working days
Payment Terms : L/C, T/T Supply Ability : 50 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE Model Number: FLD-25

Detail Information

Material: PLA,ABS Warranty: One Year
Capacity: 0.5-2kg/h Diameter: 1.75mm,3mm
Tolerance: +_0.03mm Weight: 220kg
Voltage: 220V,50HZ Color: Customized
High Light:

ABS pe Extrusion Machine


2kg/h pe Extrusion Machine


2kg/h Wpc Plastic Extruder

Product Description

Plastic Upvc Wpc Plastic Extruder Sheet Production Line Pvc Foam Board Making Machine


* Clam shell Barrel

The barrel can be opened in minutes. This makes product changeover, maintenance and research fast and easy.
* Barrel Section- Separately controlled
The modular principle of the barrel permits precise sequencing for each application. Each barrel section’s temperature can be set separately. Electrical heater shells provide for heating, cooling is obtained with water. Barrels, as well as screw and kneading elements are made out of nitrided steel in the standard version, the wear resistant version is made of suitable materials, corresponding to the respective requirements.
* Standard barrels
The freely selectable order of screws and kneading elements assure the process sections mating the process configuration. Thus,different process zones can be set up interchangeably, according to the requirements for: Conveying;Plasticizing;Mixing and shearing;Homogenizing;Degassing;Pressure building.
* Wide Application
We provide our machinery users with consistent high productivity and product quality and the maximum cost effectiveness with technology. The twin screw (P)SHJ series is ideal for precise compounding of polyolefins, engineered plastics and other continuous processes.


APPLICATION: 3D Printer filament production line

PROCESSING MATERIALS: PLA ABS for 3D printer filament

CONTROL SYSTEM: "SIEMENS" PLC touch screen full automatic control

FILAMENT DIAMETER: 1.75mm and 3.00mm



advantages as follows:

1 Big capacity compared with other suppliers who use the same model.

2 Lowest tolerance:+/- 0.02 mm.

3 Both 1.75 and 3.00mm filament diameter

4 It can process multi-materials like PLA ABS PET PA HIPS .

5 Easy operation: SIEMENS PLC full-auto controling system

6 Stable quality with good price

7 Oversea service, installation, staff trainning and technical support.


Tips for different raw material when processing extruder:


ABS filament process temperature is 230-260° C,melting point is 230° C

PLA 3D printer filament is 210-235°C, melting point is 200°C

PVA temperature for printer is 180°C-200°C.Melting point is 200°C.

PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C

PC temperature for printer is 230°C-250°CMelting point is 260°C.

HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.



Features of Desktop 3D printer filament lab extrusion pilot line

1) Using SIEMENS touch operation, real-time display of the running state, alarm information and system parameters
2) PID temperature control, the accuracy up to ±1℃
3) Pressure closed loop control is used to improve the stability of the extrusion pressure and the uniformity of the 3D printer filament
4) The traction unit using imported servo motor drive and is composed of the closed-loop control system with diameter measuring instrument, which can quickly respond to the change of the speed of the extruder, so as to achieve the requirement of the accuracy
5) The use of special winding tension transducer, to ensure the tension balance, rolling smooth and tidy, to avoid the phenomenon of knot
6) Remote monitoring can be achieved for you to build an intelligent automatic to provide convenient conditions

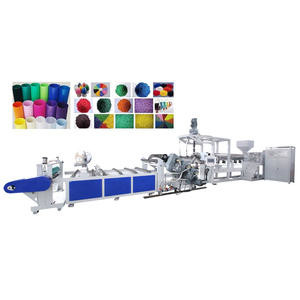

Plastic Upvc Wpc Plastic Extruder Sheet Production Line Pvc Foam Board Machine 0
