Plastic Crusher Machine
Created with Pixso.

PC / SWP Series Strong Plastic Crusher Machine 100-500kg/H Capacity

PC / SWP Series Strong Plastic Crusher Machine 100-500kg/H Capacity

Brand Name: Friend
Model Number: PC / SWP series
MOQ: one set
Price: negotiation
Payment Terms: T/T, L/C
Supply Ability: 76 sets per month
Detail Information
Place of Origin:
Jiangsu Province,China
Certification:
CE,SGS,TUV
Blade Material:
SKD-11
Capacity:
100-500kg/h
Power:
7.5-30kw
Fixed Blade:
2 Pieces
Rotary Blade:
5-21 Pieces
Shaft Diameter:
240-370mm
Application:
Film,Pipe,Tray,etc.
Screen Hole Diameter:
12mm Or Customized
Warranty:
One Year
Packaging Details:
wooden package
Supply Ability:
76 sets per month
Highlight:

plastic grinding machine

,

pvc crushing machine

Product Description

Plastic PC / SWP series waste pvc pipe crusher machine prices



Feature:



Crusher for plastic pipe blades material is SKD-11



Blade base and blade can be disassembly, it is easy to clean and maintenance .



Push material feeding system adopt hydraulic ways, it's running very stably .



Main axis is drived by gearbox , it's running very stably ,low noise and strong power .



Rotating blade adopt the V design , it can decrease the noise and energy consumption .



Crusher for plastic pipe is controlled by PLC system,blade can rotate in opposite direction,also can automatic closed if something unexpected happened,which is advanced and safety service.



Main technical parameters:

Model Crushing capacity
kg/hr
Power
Kw/Hp
Into size
mm
Stationary
Cutter
Rotary Cutter Machine Size
L*W*H
Weight
Kgs
fld-30 90-120 2.2/3.0 180*160 2 9 500*430*900 250
fld
-50
100-160 4.0/5.0 290*220 2 15 850*620*1050 350
fld
-100
150-400 7.5/10.0 400*250 2 21 970*800*1340 740
fld
-150
300-600 11.0/15.0 460*300 2 24 1200*1100*1350 1000
fld
-200
500-800 15.0/20.0 515*330 2 37 1320*1155*1700 1300
fld
-300
700-1000 22.0/30.0 550*440 2 30 1320*1210*1800 1700
fld
-500
1500-1800 37.0/50.0 720*500 2 39 2850*1430*2180 3200

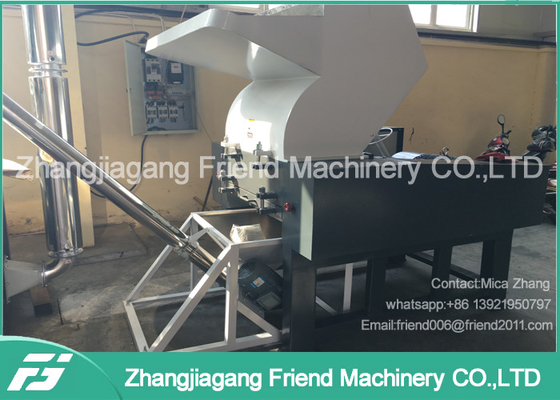

PC600 crusher

PC / SWP Series Strong Plastic Crusher Machine 100-500kg/H Capacity  0

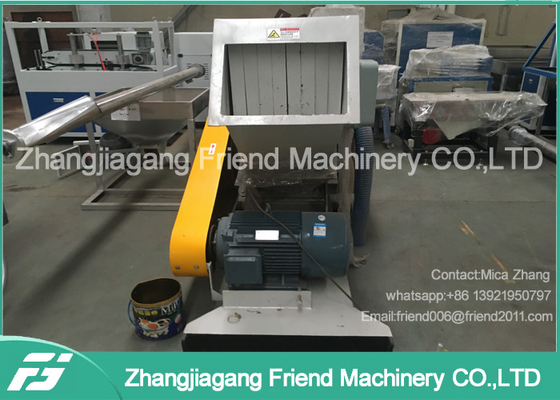

PC600 crusher control box

PC / SWP Series Strong Plastic Crusher Machine 100-500kg/H Capacity  1

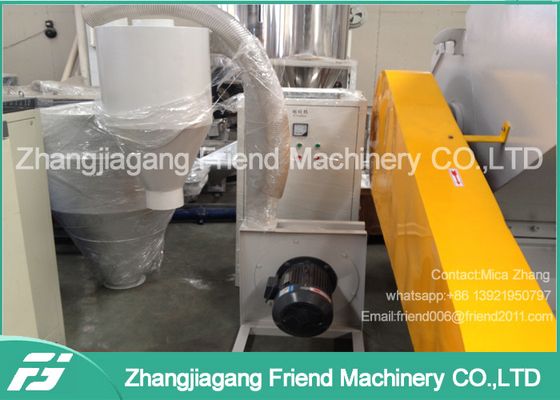

SWP400 Crusher

PC / SWP Series Strong Plastic Crusher Machine 100-500kg/H Capacity  2

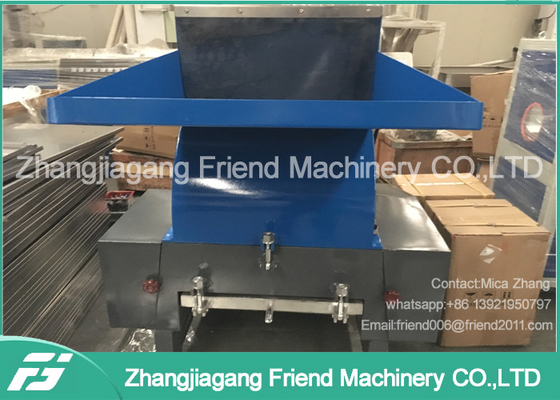

SWP400 Crusher blade

PC / SWP Series Strong Plastic Crusher Machine 100-500kg/H Capacity  3



Please feel free to contact me!
