High Performance Plastic Crusher Machine For PVC PP PE PPR Material

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : Standard wooden package Delivery Time : 30 working days
Supply Ability : 30 sets per month
Place of Origin: JIANGSU Brand Name: FRIEND
Certification: CE Model Number: SWP-400

Detail Information

Motor Power: 11 Kw Capacity: 100~200 Kg/h
Motor Brand: SIEMENS Product Name: Plastic Shredder Machine
High Light:

plastic shredder machine

,

pvc crushing machine

Product Description

SWP-400 plastic crusher machine PVC/PE pipe crushing equipemnt plastic profile/sheet crusher



Application

It is a new kind of crushing machine used for crushing plastic profiled material with large hardness and tenacity. It is improved and extended on the basis of SWP series two models. Wind motor is arranged for transport of broken material, start-up device is arranged. The operation and maintenance & repair is rather simple. It is an ideal model for crushing all sorts of pipe material and profiled material.



1. This series breaker mainly uses in the stave each kind of plastic plastic and the rubber like plastic different molding, the tube, the stick, the silk thread, the thin film, the worn out rubber products.

2. The aggregate may supply to squeeze out directly, injection molding,plastic bottles, containers, pellicle, plastics sheets,spurs from injection molding machines and extrustion parts etc.

3.  the SWP-400 plastic breaker is the recycling large-scale molding, the tubing ideal equipment;

4. Its stave ability is big, the output is high, the operating performance is stable, and matches automatically by is the material machine, enhanced this machine automaticity.

5. the SWP-630 plastic breaker is one kind uses in the stave large-scale plastic midheaven vessel, bulk nose material, board material special purpose equipment.

6. The cutter stand is designed as a step-shearing style, which can resolve the force bored by cutting, and increase the force of cutting greatly.



Specification

Model   SWP160 SWP200 SWP300 SWP400 SWP630
Diameter of rotaing blade mm 160 200 300 400 630
Rotaing blade quantity pc 8 3 3 5 9handfuls/4groups
Rotaing speed of rotaing blade rpm 500 870 640 500 480
Fixed blade quantity pc 2 2 3 2 4handfuls/2groups
Fixed blade quantity pc 8 8 2or4 410 10
Grinding capacity kg/h 100-200 50-110 50-250 350-450 700-850
Power kw 5.5 4 37 13.2 44
Power source V 220/380 220/380 220/380 220/380 220/380
Aperture of feed mm 350*100 240*350 260*1200 375*320 800*610
Weight kg 450 300 2000 980 5000



Machine features

1. The special cutter is made of import-high-quality tool steel which is special durable. The adjustable installation of cutter makes the cutter can be used again and again, extends the usage lifetime.

2. Steel body and clamping blade prevent the machine from cracking. The step-shearing design of movable cutter′s pedestal decomposed and increased exponentially the cutting force.

3. Stepped blades increase shearing strength and crushing efficiency. The movable cutter′s pedestal is made of T7A advanced high-quality tool steel which is not easy to break and tear, and fixed by high-strength steel screws(8.8 level) which is solid and durable.

4. The host is made of the Q235A thick walled constructional quality steel which can ensure the long-time use of crusher. Sound separation layer in the feeding door lowers operations noise levels.

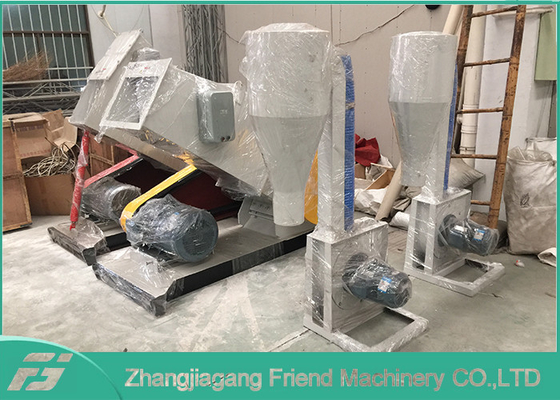

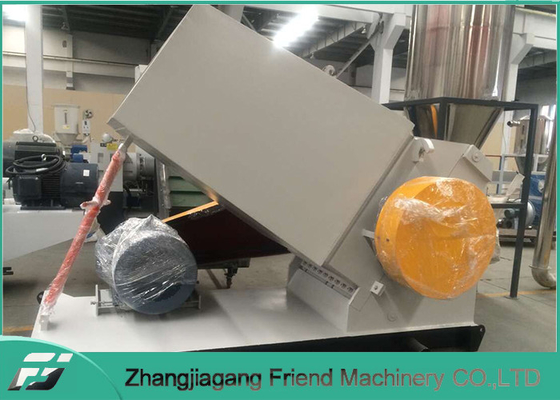

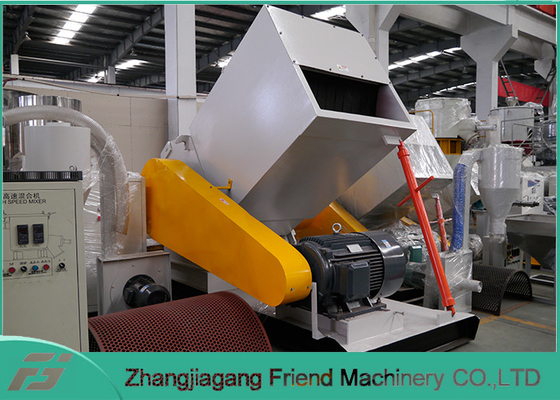

Machine pictures

High Performance Plastic Crusher Machine For PVC PP PE PPR Material 0
