Practical 3D Printer Filament Machine For PEEK 3D Printing 3Phase 380V 50HZ Voltage

Minimum Order Quantity : One set Price : negotiation
Packaging Details : Wooden package Delivery Time : 20 days after receiving deposit
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 30 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE,SGS,TUV Model Number: SJ35,SJ45

Detail Information

Material: PEEK Application: 3D Printing Material
Screw Design: Single Screw Voltage: 3Phase 380V,50HZ
Power: 15kw After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

3d printer filament making machine

,

3d printer filament extruder machine

Product Description

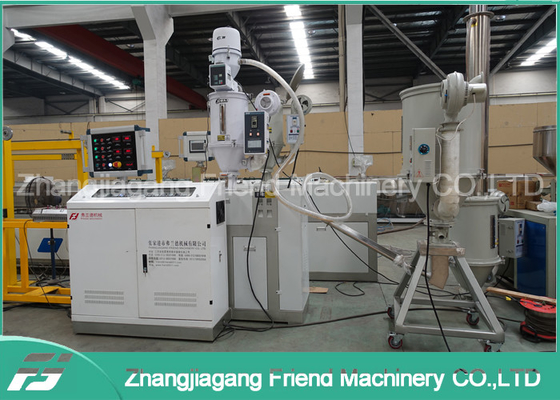

Friend Machinery Plastic 3D Printer Filament Machine For PEEK 3D Printing





Features:

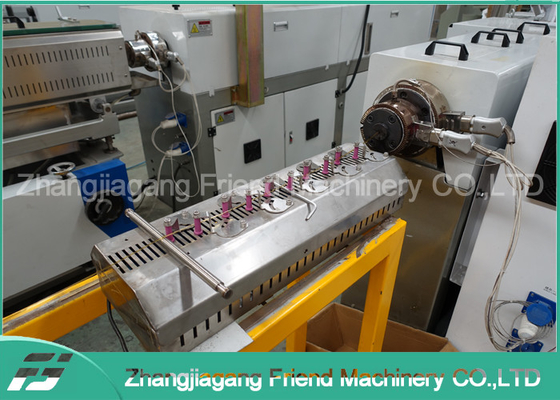

The extrusion line is mainly used PLA/ ABS and other supplies extrusion. Extrusion die head adopts special consumables machine head, beautiful, practical, easy to operate. Heating uses cast aluminum external heaters, heating time fast, sensitive regulation. traction sheave by dynamic balance, runout less than or equal to 0.02. Take-plum nut using a pin tight, more convenient than the traditional way of screws spiral tight, beautiful. The enterprises and supporting enterprises have passed SGS,TUV quality certification.Electric elements are demonstrated by CE.
Adaptation extrusion materials: ABS, PLA

Ø35 Extruder for 3D printer filaments extrusion

Max extrusion capacity: 25kgs per hrs (machine head opened)

6 ~ 8kgs per hrs (actual production)
Filament size range: ø1.75mm to ø3.0mm
Speed: Mechanical settings with 120m/min

Process speed with 60m to 100m per minute
Center height: 1000mm
Power supply: 380V/50Hz Three-phase five-wire system (Can be customized to local standards)
Operating direction and Machine color is selected by buyers.
Customer-owned water and electricity





Technical Parameter:



Product Name
3D Printer Filament Machine
Material
PEEK,ABS,PLA,HIPS,Nylon,etc
Color
Black, white,Pink, more than 30 colors
Standard
1.75mm/2.85mm/3.0mm
Roundness
±0.02mm
Tolerance
1.75±0.03mm; 2.85±0.05mm
Suitable 3D printer
Makerbot, UP box, Zortrax, Printrbot, Ultimaker, Afinia, Solidoodle, Cube, Lulzbot…
Used
3D printer Filament



Main Features:

Features of 3D Printing Filament Machine:


1) Using SIEMENS touch operation, real-time display of the running state, alarm information and system parameters.


2) PID temperature control, the accuracy up to ±1℃.


3) Pressure closed loop control is used to improve the stability of the extrusion pressure and the uniformity of the 3D printer filament.

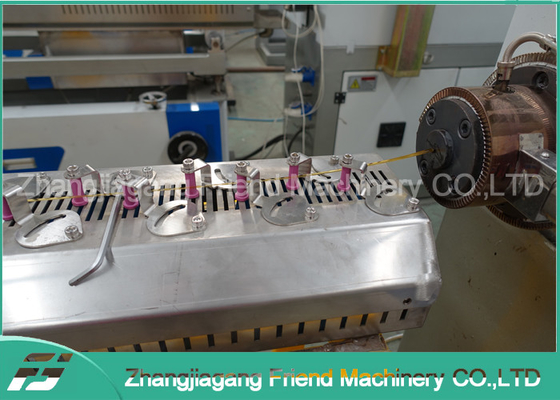

4) The traction unit using imported servo motor drive and is composed of the closed-loop control system with diameter measuring instrument, which can quickly respond to the change of the speed of the extruder, so as to achieve the requirement of the accuracy.


5) The use of special winding tension transducer, to ensure the tension balance, rolling smooth and tidy, to avoid the phenomenon of knot.


6) Remote monitoring can be achieved for you to build an intelligent automatic to provide convenient conditions.



3D Printing Filament Machine

Harden is well established in design and building extrusion lines for polymer processing since 2006. The company has always been leading the industry in developing precision small extrusion lines and laboratory extrusion equipment. As FDM technologies is being becoming popular, Harden set up a subsidiary specialized in supplying 3D printing filament production lines.

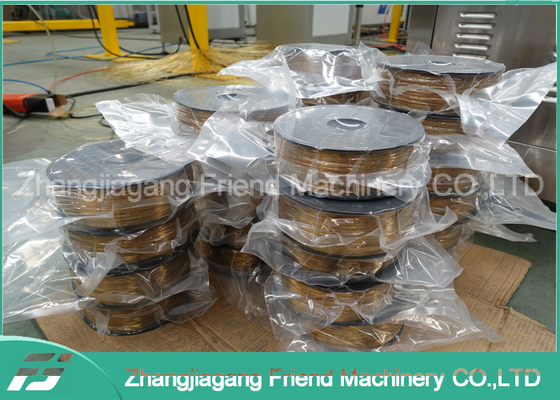

PEEK Filament with Package
