Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: FLD-45

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: negotiation
Packaging Details: Wooden Package
Delivery Time: 20 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Material: PLA ABS PA PET HIPS TPU TPR Screw Design: Single Screw
Voltage: 3Phase 380V 50HZ Diameter Tolerance: +-0.02mm
Warranty: 12 Months Capacity: 15-25kg/h
High Light:

3d printer filament making machine

,

3d printer filament extruder machine

Product Description

PLA ABS PA PET HIPS TPU TPR 3d printing filament extruder machine





AS 3D printing industry is developping so hot now. 3D printing filament is becomming most popular printing materials in this period. Our Zhangjiagang Friend machinery Co.,LTD developed the ABS PLA 3D Printing Plastic Filament Extruding Machine cor customer to produce good quality 3d printing filaments to resell and get profit.

Our ABS PLA 3D Printing Plastic Filament Extruding Machine has advantages of high accurancy production final products, our ABS PLA 3D Printing Plastic Filament Extruding Machine can produce within ±0.02mm filament. So we have advanced technology in ABS PLA 3D Printing Plastic Filament Extruding Machine .

Information of the raw material used by ABS PLA 3D Printing Plastic Filament Extruding Machine , such as PLA, PA Nylon, PC ,and HIPS and ABS filaments:
ABS filament process temperature is 220-240° C,PLA 3D printer filament is 180-210.0°C,PVA temperature for printer is 180°C-200°C.Melting point is 200°C.
PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C PC temperature for printer is 230°C-250°CMelting point is 260°C. HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.



3D Printing Filament Machine advantages as follows:

1 Big capacity compared with other suppliers who use the same model.
2 Lowest tolerance:+/- 0.02 mm.
3 Both 1.75 and 3.00mm filament diameter
4 It can process multi-materials like PLA ABS PET PA HIPS .
5 Easy operation: SIEMENS PLC full-auto controling system



Machine Quantity
Hopper dryer 1SET
Extruder 1SET
Mould and die 2SETS (1.75mm and 3.0mm)
4 Meter Hot water tank 1SET
2 Meter Cold water tank 1SET

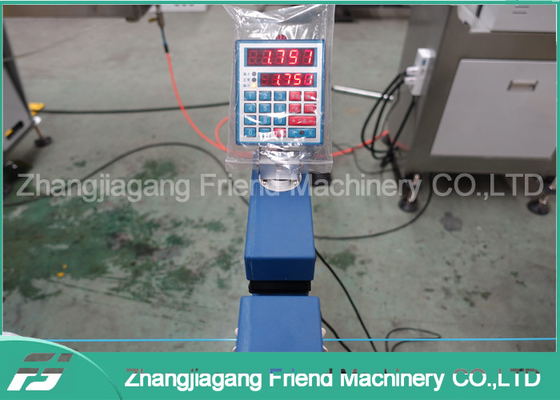

Laser measuring machine 1SET
Haul off machine 1SET
Winding machine

1SET




Application:

abs 1.75mm 3d printer filament extrusion line has been used by designers, engineers and scientists to produce the disposable mechanical products and model, and it is already widely used in health care, education, toys, building, automobile, electronics, and anime field.




Feature:

1. Information of the PLA, PA Nylon, PC ,and HIPS and ABS filaments,
2. ABS filament process temperature is 230-260° C,melting point is 230° C
3. PLA 3D printer filament is 210-235°C, melting point is 200°C
4. PVA temperature for printer is 180°C-200°C.Melting point is 200°C.
5. PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C
6. PC temperature for printer is 230°C-250°CMelting point is 260°C.
7. HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.
1. Produce process

I . Before produce extruding filament ,we will dry ABS and PLA for a enough time (1-1.5 hours).

II. Mix with colors masterbatch or colors powder, all which .

III.Adjust temperature and dragging rate , make filament diameter range at 1.7-1.8mm/2.95-3.05mm, roundness +/-0.05mm, each spool net weight 1kg+/-0.02kg




2. About waste & recycle

3d printing PLA filament extruding machine Much time you will find some black filament is too brittle, that added and mixed with some recycle and scrap after produced.



Winding Machine For 3D Printing
