900mm Width WPC Board Production Line With PVC Resin Material Easy Operation

900mm Width WPC PVC Decoration Board Profile Extrusion Production Line

Description:

PVC board is made of PVC as raw material and is the plate of honeycomb mesh structure.Also known as decorative film and adhesive film, it is a vacuum absorbing plastic film used for various kinds of surface packing of panels, which is used in many industries such as building materials, packaging and medicine.

PVC board accounts for 60% of the building materials industry, followed by packaging industry and a number of other small-scale applications.According to the degree of hardness can be divided into soft PVC and hard PVC.The production process can be divided into PVC skin foaming board and PVC free foaming plate.Transparent and opaque can be divided into PVC transparent board and PVC board.

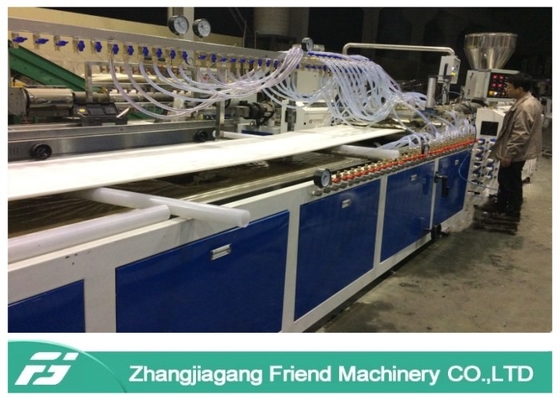

PVC board profile extrusion line adopt high efficiency plasticizing extruder ( conical twin screw extruder ) , and pvc powder material mixed as formula .

Features:

1, light weight, good tenacity, high rigidity, easy for transportation

2, fireproof and moisture proof, mildew proof

3, good insulation

4, good plasticity, excellent thermoform material, anti-chemical corrosion

5, easily to processed: Nailing, cutting, sawing, welding, hole-drilling, Channeling

6, sub-light surface and elegant vision

8, suitable to silk screen printing

9, long using life, unfading and anti-aging

Technoical parameters:

SJSZ80/156 conical twin Screw Extruder

3. Mold and head

l Mold form : Hanger type mold

l Mold material: High quality stainless steel forging ,surface polished

l Mold mouth : Adopts adjustable screw

l Heating way : Stainless steel electrical heating rod

l Workable mold mouth width: 1320mm

l Final product width:1250mm

l Final product thickness: 8-18mm

l Mold temperature measuring : Thermocouple

4. Forming device

l Forming type : Adjustable cooling forming plate

l Cooling mold size : 1500mm*50mm*4

l Cooling mold adjustable way :Hydraulic pressure, up and down

l Cooling type : Water cooling

l Forming table adjustable way : Three dimensional adjustment

l Machine holder : 5mm thickness square steel

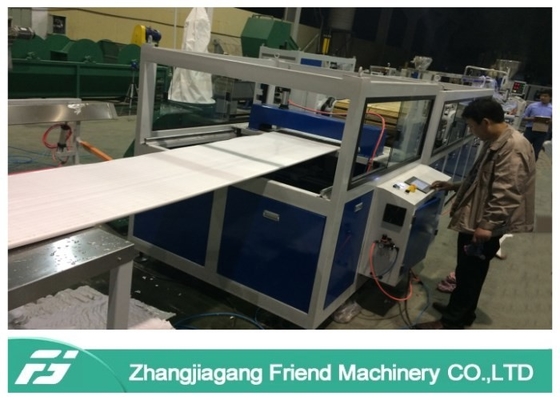

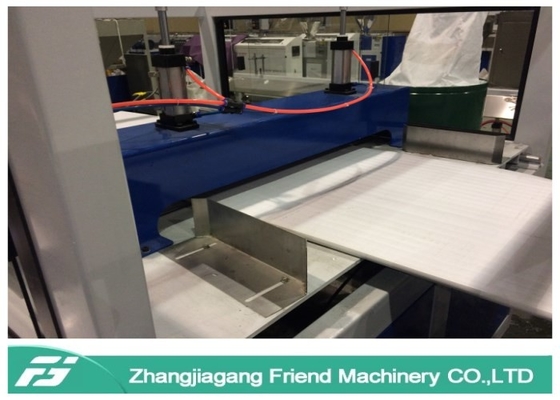

5. Haul off machine (with cooling conveyor frame)

l Tractor type :Driving type ,up and down

l Haul off roller : 8* diameter 250mm rubber roller

l Clamping way : Adjustable air cylinder

l Driving power :7.5kw

l Reducer : Hard gear reducer box

l Side cutter : Saw blade type

l Cutter motor : 2*1.5kw

l Control system : Independent control box with Siemens converter

6. Cutter

l Cutter size : Max width 1250mm ,thickness 8-18mm

l Cutter saw blade : High quality alloy steel blade

l Cutting direction : Horizontal direction

l Driving motor : 0.55kw , 1.55kw

l Control system : Independent PLC control system with Siemens converter

l Dust collection part : Two collection devices

7. Stacker

l Size :2500*1500mm
