SIEMENS Motor Brand Plastic Mixer Machine With Heating / Cooling Tank

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : Standard wooden package Delivery Time : 30 days after payment
Supply Ability : 20 SETS PER MONTH
Place of Origin: JIANGSU Brand Name: FRIEND
Certification: CE Model Number: SHR-300

Detail Information

Motor Power: 55 Kw Motor Brand: SIEMENS
Control: By Inverter Inverter: By ABB
Heating Power: 15 Kw
High Light:

high speed mixer machine


plastic raw material mixer

Product Description

SHR-300 high speed mixer machine plastic mixer machine 120kg PVC powder mixing unit



  • The mixer used in plastics,rubber,daily chemical industry and laboratory materials mxied boxes,mixing,drying and cloring process.
  • The mixer Lid is double sealed for pvc heating mixer.
  • The mixer Spindle speed up to 3000 revolutions per minute, with electric heating, in order to achieve the best mixing effect
  • PVC heating mixer can mixing PVC flour And other plasticizer and other auxiliary materials, Raw material mixture can be directly into production line or other machine for production.
  • PVC heating mixer discharge method using two automatic temperature control and manual control.
  • Stainless stell blades for the whole cast ,and throughdymamic and static balance test refind.
  • PVC heating mixer eletrical contorl components of famous brand.


Machine features

  • The upper set is for hotting, and the lower one is for cooling;
  • We also can use the variable-frequency motor as your needs;
  • Five parts included in this unit: two containers, transmission agent, pneumatic components, cooling system and base structure.
  • The interior is made of stainless steel with polished finish;
  • The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements;
  • The discharge hole is made of aluminium alloy; the valve is controlled in the force of pneumatic;

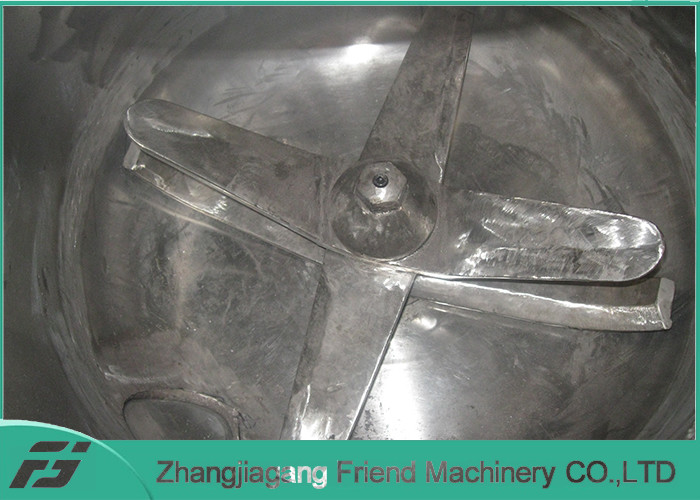

  • The paddle is made of stainless steel in the structure of top, center and bottom;
  • Temperature measuring equipment (TME) in the interior wall of the container;


Machine configuration


Model Total volume Effective volume

Power of electrical

machinery and heating

Principal axis rotary speed

Figure dimension


SHR-5A 5L 3L 1.1KW 1400rpm 620*300*730
SHR-10A 10L 7L 3KW 2000rpm 1200*300*830
SHR-25A 25L 20L 5.5KW 1440rpm 1200*350*850
SHR-50A 50L 35L 7/11/3KW 750/1500rpm 2100*700*1100
SHR-100A 100L 75L 14/22/6KW 650/1300rpm 2100*800*1510
SHR-200A 200L 150L 30/42/6KW 475/950rpm 2400*850*1580
SHR-300A 300L 225L 40/55/9KW 475/950rpm 2000*1080*1680
SHR-500A 500L 375L 47/67/12KW 430/860rpm 3060*1150*1880
SHR-800A 800L 600L 83/110/15KW 370/740rpm 3385*1380*2750
SHR-1000A 1000L 750L 110/160/28KW 325/650rpm 3460*1140*2900
SHR-200C 200L 150L 30/42KW 650/1300rpm 2545*900*1700
SHR-300C 300L 225L 47/67KW 475/950rpm 2000*1080*1680
SHR-500C 500L 375L 83/110KW 500/1000rpm 3060*1150*1880



Q:Are you machinery factory or trading company?
A:We are machinery factory

Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.

Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.

Q: How can we visit your company and machines?
A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.

Q:What`s the payment method?
A: T/T, L/C,Western Union,etc


Machine package

SIEMENS Motor Brand Plastic Mixer Machine With Heating / Cooling Tank  0
