Product Details:

Place of Origin: Jiangsu province,China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SRL-Z

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: wooden package
Delivery Time: 25 worker days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Material: PVC Powder Motor Type: Double Speed Motor
Wall Thickness: 6mm Warranty: One Year
After-sales Service: Engineers Available To Service Machinery Overseas Motor Power: 45/55kw,55/75kw
High Light:

high speed mixer machine

,

plastic raw material mixer

Product Description

Plastic SRL-Z series high speed mixer for PVC powder / PVC plastic mixer



1. Application:



SRL series cooling mixer machine has advanced technology, safe and reliable, convenient to operate. Little volume, light weight, high efficiency, low energy consumption, low noise, corroded not easily.

SRL series cooling mixer machine equipped with SHP series high-speed mixer machine, can widely used in Mix, drying, coloring and other processing for all kinds of plastics. Cooling mixer machine can cool the finished hot material, to eliminate the residual gas in the mixed materials, easy storage of materials, transportation and subsequent processing; plastic processing industry is one of the necessary equipments.



2. Main technical parameters:

Model/specs SRL-Z100/200 Hot mixing/cold mixing SRL-Z200/500 Hot mixing/cold mixing SRL-Z300/600 Hot mixing/cold mixing SRL-Z500/1000 Hot mixing/cold mixing SRL-Z800/1600 Hot mixing/cold mixing
Total cubage(L) 100/200 200/500 300/600 500/1000 800/1600
Effective cubbage(L) 65/130 150/320 225/380 375/650 600/1050
Mixed speed(r/min) 650/1300/80 475/950/80 475/950/80 430/860/60 370/740/50
Heating & cooling manner electric heating self-friction/water cooling
Mixed time(min/batch) 8-12 8-12 8-12 8-12 8-12
Motor Power(KW) 14/22/7.5 30/42/11 40/55/11 47/67/15 60/90/22
Dimension(L×W×H)(mm) 1950×1600×1800 4580×2240×2470 4800×2640×2480 4600×3000×4050 5170×3200×4480
Weight(kg) 2200 3400 3600 6500

8600











3. Picture:

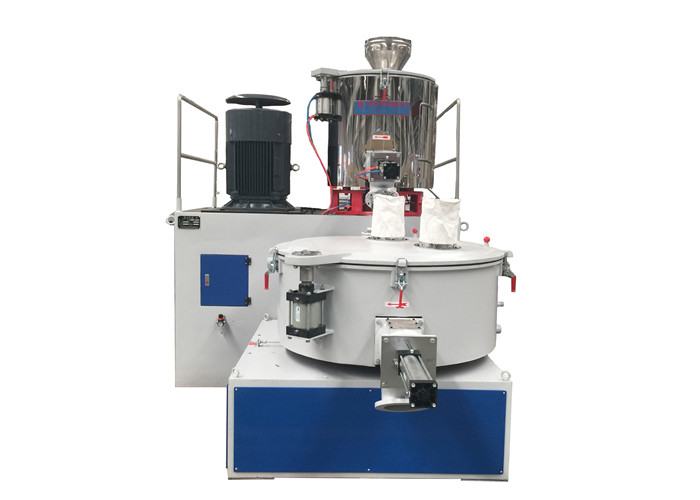

Plastic SRL-Z500/1000 high speed mixer

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 0



Plastic SRL-Z500/1000 high speed mixer

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 1



Plastic SRL-Z800/1600 high speed mixer

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 2



SRL-Z800/1600 high speed mixer shaft blade

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 3



Factory picture

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 4



4.Package



SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 5
