Easily Cleaning Plastic Mixture Machine , Pvc Mixer Machine 75kw Motor Power

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : Standard wooden package Delivery Time : 30 days after payment
Supply Ability : 20 SETS PER MONTH
Place of Origin: JIANGSU Brand Name: FRIEND
Certification: CE Model Number: SHR-500

Detail Information

Motor Power: 75 Kw Motor Brand: SIEMENS
Control: By Inverter Inverter: By ABB
Heating Power: 15 Kw
High Light:

pvc mixer machine


plastic raw material mixer

Product Description

SHR-500 high speed mixer machine plastic mixer machine PVC power mixer equipment



  • It is widely applied to mixing, stirring, drying and coloring of various materials in industries of plastic, rubber, pharmacy, fuel, food, daily chemicals, etc. SHR series mixers adopt advanced design, so it convenient and safe for operation. It offers small size, light weight, high efficiency, low energy consumption, and low noise.
  • SHR series high speed silver powder mixers with two-stage mixed model are suitable for mixing various granular or massive solid powder with silver powder. Meantime the materials can be mixed by flow guiding. The temperature is controlled accurately with variable frequency. There is no powder leakage with good sealing. The mixers have the advantage of easy operation, mixing efficiently and high yield. Mixers are equipped with security interlock system, operational safety. This machine also can apply to manufacture silver powder, copper powder and nickel powder etc.


Machine features

  • The upper set is for hotting, and the lower one is for cooling;
  • We also can use the variable-frequency motor as your needs;
  • Five parts included in this unit: two containers, transmission agent, pneumatic components, cooling system and base structure.
  • The container:
  • The interior is made of stainless steel with polished finish;
  • The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements;
  • The discharge hole is made of aluminium alloy; the valve is controlled in the force of pneumatic;
  • The paddle is made of stainless steel in the structure of top, center and bottom;
  • Temperature measuring equipment (TME) in the interior wall of the container;
  • Mixing uniformity, good sealing performance.
  • Easily cleaning, change color conveniently.
  • Temperature is controlled accurately with frequency conversion.
  • There are interlock system of safety protection and overload protection for motors, operational safety.
  • Discharging conveniently.


Machine configuration


Model Total volume Effective volume

Power of electrical

machinery and heating

Principal axis rotary speed

Figure dimension


SHR-5A 5L 3L 1.1KW 1400rpm 620*300*730
SHR-10A 10L 7L 3KW 2000rpm 1200*300*830
SHR-25A 25L 20L 5.5KW 1440rpm 1200*350*850
SHR-50A 50L 35L 7/11/3KW 750/1500rpm 2100*700*1100
SHR-100A 100L 75L 14/22/6KW 650/1300rpm 2100*800*1510
SHR-200A 200L 150L 30/42/6KW 475/950rpm 2400*850*1580
SHR-300A 300L 225L 40/55/9KW 475/950rpm 2000*1080*1680
SHR-500A 500L 375L 47/67/12KW 430/860rpm 3060*1150*1880
SHR-800A 800L 600L 83/110/15KW 370/740rpm 3385*1380*2750
SHR-1000A 1000L 750L 110/160/28KW 325/650rpm 3460*1140*2900
SHR-200C 200L 150L 30/42KW 650/1300rpm 2545*900*1700
SHR-300C 300L 225L 47/67KW 475/950rpm 2000*1080*1680
SHR-500C 500L 375L 83/110KW 500/1000rpm 3060*1150*1880

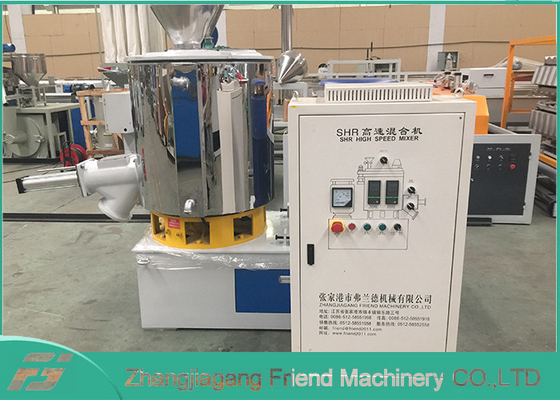

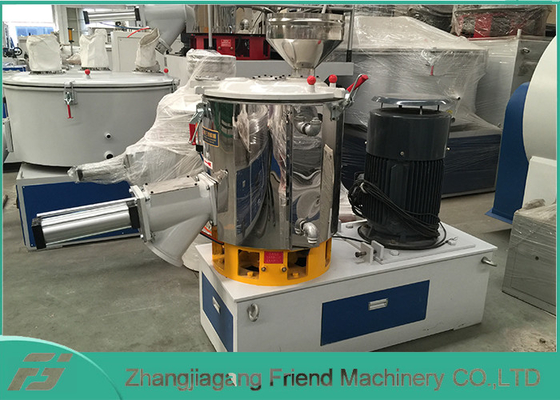

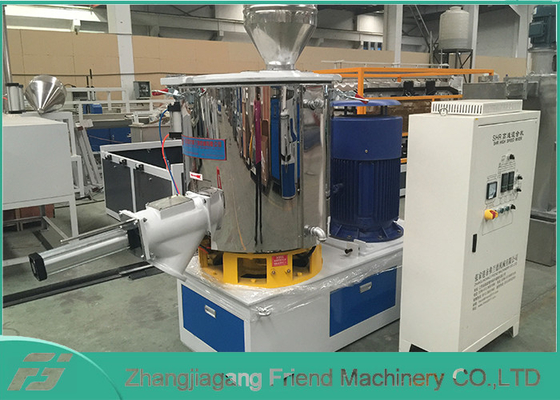

Machine pictures

Easily Cleaning Plastic Mixture Machine , Pvc Mixer Machine 75kw Motor Power 0


Easily Cleaning Plastic Mixture Machine , Pvc Mixer Machine 75kw Motor Power 1
