6mm WT Stainless Plastic Mixer Machine With Natural Exhaust Vacuum System

6mm WT Stainless Plastic Mixer Machine With Natural Exhaust Vacuum System

Product Details:

Place of Origin: Jiangsu province,China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SRL-Z

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: wooden package
Delivery Time: 25 worker days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Material: PVC Powder Motor Type: Double Speed Motor
Voltage: 380V Or Customized Wall Thickness: 6mm
Automatic Grade: Automatic Noise: Low
Warranty: One Year Motor Power: 45/55kw,55/75kw
High Light:

Stainless Plastic Mixer Machine

,

6mm WT Plastic Mixer Machine

,

Stainless plastic static mixer

Product Description

 SRL-Z Series Heating Cooling Mixing Unit High Speed Plastic Mixer Machine



Application



SRL-Z series plastic mixer is mainly used for the preparation,mixing,cooling and drying of PE,PP,PVC and other resins.At the same time,it is suitable for the drying and degassing before the molding and processing of ABS,PC and other engineering plastics.The machine is composed of heating mixer and cooling mixer.



Advantages

This unit is developed by importing and absorbing foreign advanced technology. By adopting PLC control, it features high automatic
level, good mixing effect, complete function, compact structure and beautiful appearance. It is the ideal equipment for plastic
mixing.



FEATURES

With natural exhaust and vacuum system, it can remove water inside the material effectively. This machine uses ceramic heating ring, which is durable and easy to maintain.
Compactor cutter can effectively dry materials, high-speed forced feed into the screw after the material reaches a certain temperature, improve the output and reduce the heating of the screw to the plastic, accelerate the plasticization process, save energy effectively.

Hydraulic screen changer is installed on the die-head of the granulator to effectively remove the impurities in the material.

The special design of the granulator head part can effectively remove the hidden moisture inside the material and improve the granulation quality. Different quality of the finished product can be produced through different mesh filters. Stainless steel 304 net can be used. It doesn’t need to be changed frequently.



Product Details

Siemens Electric

The electrical are all Siemens electrical applicances to ensure the stable operation of machine.

Low Noise Motor

Use snow wave cycloidal pin gear motor,low noise,durable,low vibration loss of the whole machine,mainteanace-free.

Mixer Cover

150/200/300kg is a hinge semi-separated type,strong and thick,easy to open.



Main Techunical Parameter

Model SRL-Z100/200 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/1600
Total Volume(L) 100/200 200/500 300/600 500/1000 800/1600
Effective Capacity(L) 65/130 150/320 200/360 330/640 600/1050
Rotation Speed(rpm) 650/1300/80 475/950/80 475/950/80 430/860/60 370/740/50
Mixing time(min) 8-12 8-12 8-12 8-12 8-12
Motor Power(kw) 14/22/7.5 30/42/11 40/55/11 55/75/15 83/110/22
Overall Diamension(mm) 1950*1600*1800 4580*2240*2470 4800*2640*2480 5600*3000*3100 5170*3200*4480
Weight(kg) 2200 3400 3600 6500 9800



Pictures

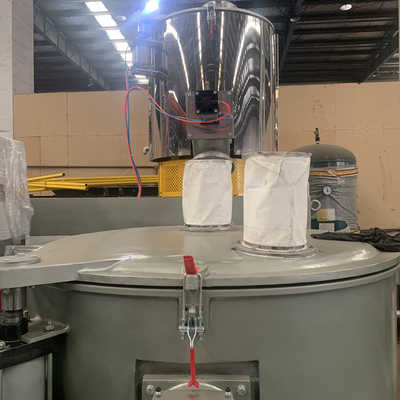

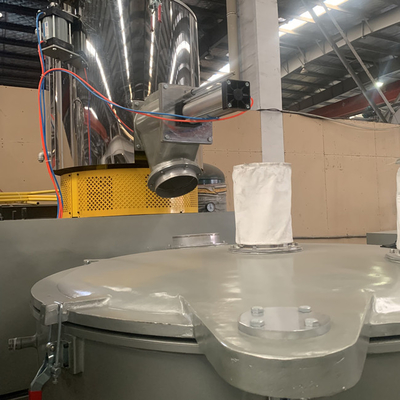

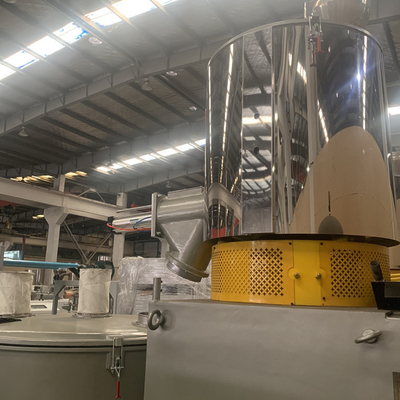

6mm WT Stainless Plastic Mixer Machine With Natural Exhaust Vacuum System 06mm WT Stainless Plastic Mixer Machine With Natural Exhaust Vacuum System 16mm WT Stainless Plastic Mixer Machine With Natural Exhaust Vacuum System 26mm WT Stainless Plastic Mixer Machine With Natural Exhaust Vacuum System 36mm WT Stainless Plastic Mixer Machine With Natural Exhaust Vacuum System 4
