Heating Cooling Vertical PVC Mixer Machine 200kg/h capacity

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : STANDARD WOODEN PACKAGE Delivery Time : 30 days after payment
Supply Ability : 20 SETS PER MONTH
Place of Origin: JIANGSU Brand Name: FRIEND
Certification: CE Model Number: SRL-Z 500/1000

Detail Information

Speed Control: Transducer Transducer: ABB
Voltage: 220/380/415/440V Motor Power: 75 Kw+ 15 Kw
Core Componnets: Engine,motor Machine Height: 3.5 Meters
Capacity: 180-200kg/h Mixing Unit: 15 Minutes Per Pot
Motor Brand: SIEMENS Machinery Test Report: Provided
High Light:

Vertical PVC Mixer Machine


Heating Cooling PVC Mixer Machine


Heating Cooling pvc compounding mixer

Product Description

Model SRL-Z 500/1000 Heating Cooling Unit Vertical Plastic Mixer Machine For PVC Powder Mixing



FRIEND SRL-Z Series Mixing Unit is mainly for PVC Industry or any other coloring, drying mixing for plastic industry. The unit combines hot mixer with pancake cooler. Normally the cooler capacity is double size of the hot mixer. The mixer blade is 3 terrace Style Blade for Rigid PVC formulation and Round Disk Style for Soft PVC Formulation. The mixing time can be 10-15 minutes per batch.



1.It is used in mixing, drying, coloring and other industrial art, it is the ideal equipment for producing profile and pipe,all the extruding complete lines. 2.It is heating mixing has self-friction electric heating.

3.Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoid deforming.

4.High Speed Pvc Hot And Cold Mixer has features of contact construction, good performance.

5.They have passed the test of dynamic balance and static equilibrium according to the national standard.


Our Superiorities

this plastic mixer apply to mix all kinds of plastic material with accessories of chemical additive agent .we have series of various plastic mixer unit , such as SRL-Z series mixer unit , SRL-Z 200/500 , SRL-Z 300/600 , SRL-Z 500/1000 , SRL-Z 800/1600 , SHL series mixer unit,SHL200A , SHL300A , SHL500A , SHL800A , SHL1000A , horizontal mixer unit SHL 1000/3000 , SHR series mixer unit , SRL-W500/1600 , SRL-W800/2500 etc.

This high speed plastic mixer is composed of two parts , hot mixing and cool mixing equipment , at same time ,it has drying function .

1.All the inner side contact with raw material are made of stainless steel material .'s well hermetic with a double sealed closure. has alternative heating ways for option , automatic and manual control has high automatic degree and is easy to operate , the raw material flows automatic in all the processing program


Main Techniacal Parameter

Model SRL-Z100/200 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000
Total Volume(L) 100/200 200/500 300/600 500/1000
Effective Volume(L) 65/130 150/320 225/380 375/650
Speed(rpm) 650/1300/80 475/950/80 475/950/80 430/860/60
Mixing Time(min) 8-12 8-12 8-12 8-12
Motor Power(kw) 14/22/7.5 30/42/11 40/55/11 55/75/15
Figure Size(mm) 1950*1600*1800 4580*2240*2470 4800*2640*2480 4600*3000*4050

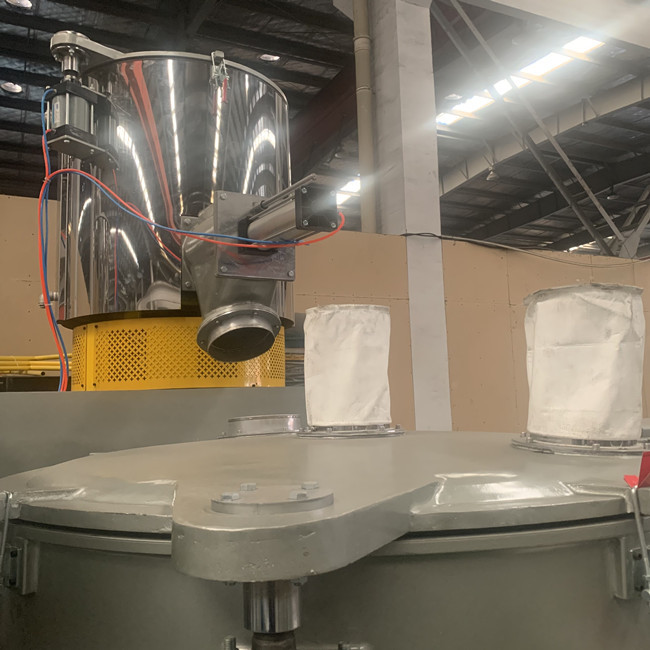

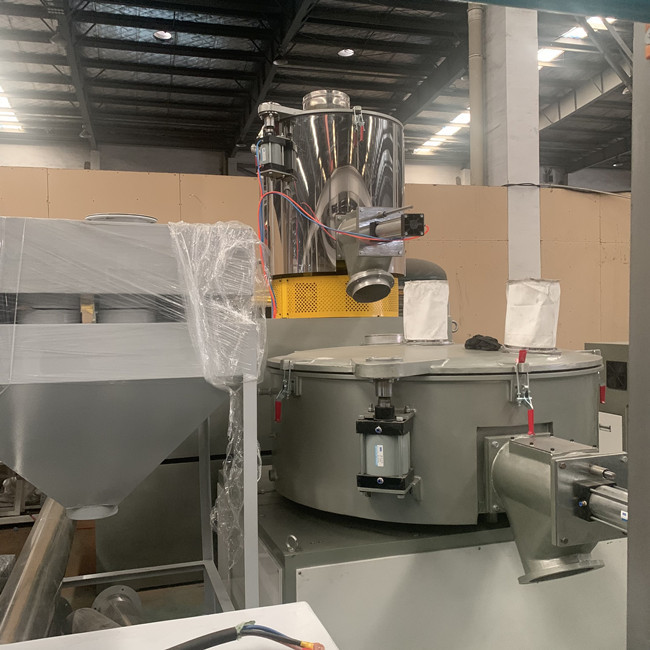

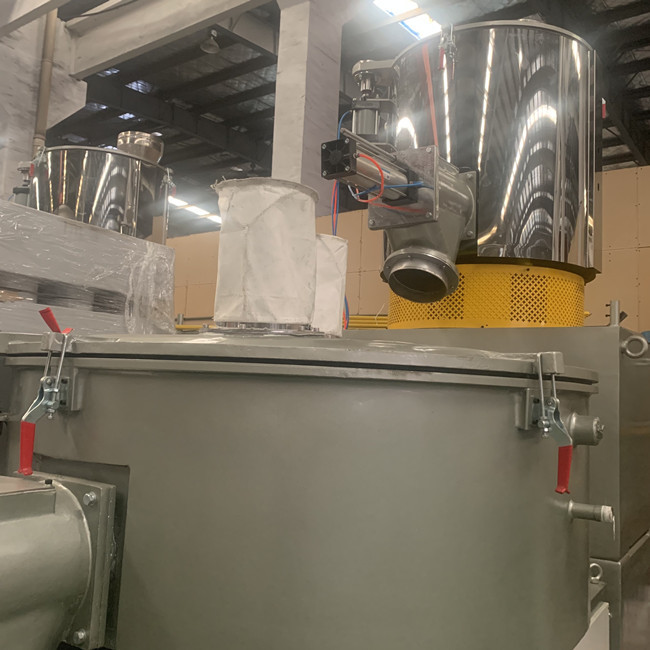

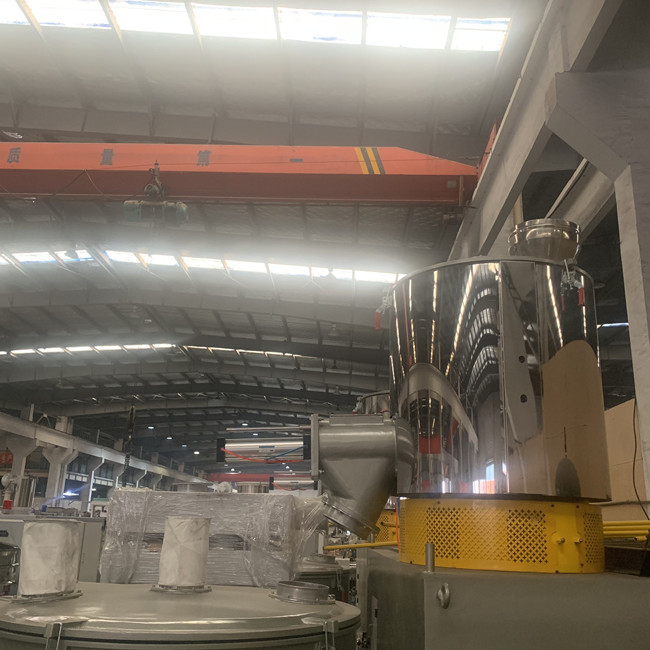

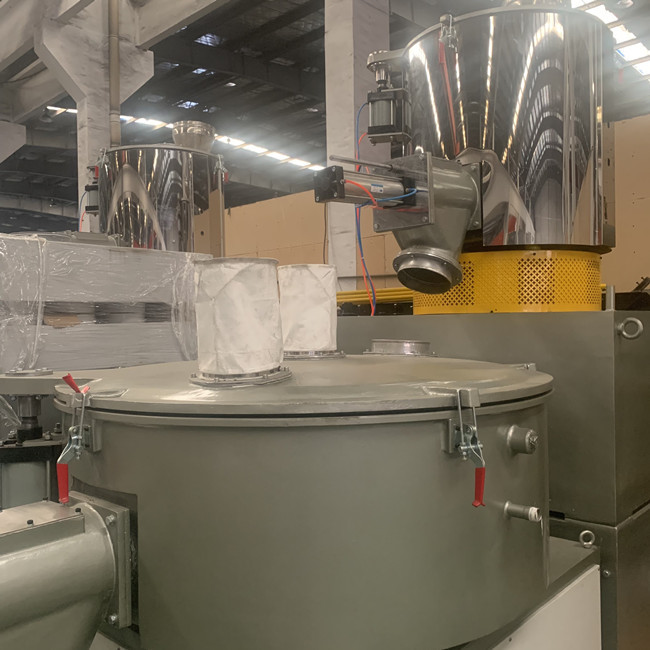

Heating Cooling  Vertical PVC Mixer Machine 200kg/h capacity 0Heating Cooling  Vertical PVC Mixer Machine 200kg/h capacity 1Heating Cooling  Vertical PVC Mixer Machine 200kg/h capacity 2Heating Cooling  Vertical PVC Mixer Machine 200kg/h capacity 3Heating Cooling  Vertical PVC Mixer Machine 200kg/h capacity 4
