6mm PVC compounding Powder Plastic Mixer Machine Fully automatic

Minimum Order Quantity : one set Price : negotiation
Packaging Details : wooden package Delivery Time : 25 worker days
Payment Terms : L/C, T/T Supply Ability : 60 sets per month
Place of Origin: Jiangsu province,China Brand Name: Friend
Certification: CE,SGS,TUV Model Number: SRL-Z

Detail Information

Material: PVC Powder Motor Type: Double Speed Motor
Wall Thickness: 6mm Capacity: 50-500kg/h
Warranty: 1year Automatic Grade: Fully Automatic
After-sales Service: Engineers Available To Service Machinery Overseas Motor Power: 45/55kw,55/75kw
High Light:

PVC Powder plastic mixer machine


6mm plastic mixer machine


6mm pvc compounding mixer

Product Description

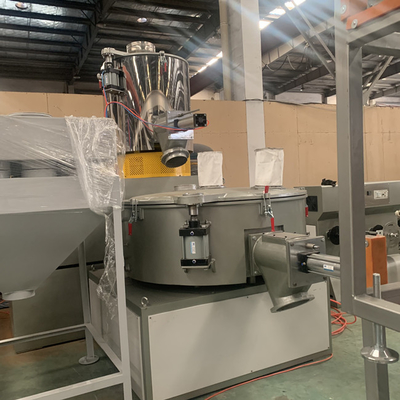

6mm PVC Powder SRL Series Plastic Mixer Machine Heating Cooling mixed



The High Speed Hot Mixer is mainly used for the mixing and coloring of polyvinyl chloride resin, the coloring and drying of polyethylene and polypropylene particles, the drying before the molding and processing of hygroscopic resins such as ABS and polycarbonate, and the mixing of phenolic resin. One of the necessary equipment for plastic processing plants, it also has a wide range of uses in rubber, pharmacy, dyes and other industries. Because Hot Mixing Machine has the advantages of fast mixing, uniform mixture, good resin absorption of plasticizers, simple machine operation, easy cleaning, strong and durable, compact structure, etc., in recent years, it has gradually replaced low-speed mixers and is widely used Production in various plastic industries.




SRL-Z series plastic mixer is applicable for mixing, colouring and drying of various resin such as poly, PE,PP,PVC polypropylene, poly chloride etc.


The unit combines hot mixer and cooler mixer together .The material will get into cooler mixer for cooling automatically when they finish heating ,exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.


This unit is developed by importing and absorbing foreign advanced technology. By adopting PLC control, it features high automatic level, good mixing effect, complete function, compact structure and beautiful appearance. It is the ideal equipment for plastic mixing.


Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming,

It has features of contact construction, good performance



1. For bulk goods, we will pack them in wooden cases

2. For full container loading, we use film packaging machine and some are packed on pallets

3. We can send it by air or sea

4. We will send photos of the goods loaded to our customers for inspection and record

5. We can deliver the goods to the customer's warehouse for loading


Main Technical Parameter

Model Total capacity(kg/h) Effective capacity(kg/h) Motor power(kw) Spindle speed(rpm)
SRL-Z50/100 50/100 32/75 7/11/5.5 750/1500/180
SRL-Z100/200 100/200 75/160 14/22/7.5 650/1300/150
SRL-Z200/500 200/500 150/320 30/42/11 475/950/130
SRL-Z300/600 300/600 200/360 40/55/11 475/950/130
SRL-Z500/1000A 500/1000 375/650 47/67/18.5 430/860/60
SRL-Z500/1000B 500/1000 350/640 55/75/15 430/860/50
SRL-Z800/1600A 800/1600 600/1024 75/30 500/50


More Product Pictures

6mm PVC compounding  Powder Plastic Mixer Machine Fully automatic 06mm PVC compounding  Powder Plastic Mixer Machine Fully automatic 16mm PVC compounding  Powder Plastic Mixer Machine Fully automatic 26mm PVC compounding  Powder Plastic Mixer Machine Fully automatic 36mm PVC compounding  Powder Plastic Mixer Machine Fully automatic 4
