SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption

Name: SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption
Brand: Zhangjiagang Friend Machinery Co., Ltd.
SKU: SRL-Z
Price: 15000.00 USD
Availability: InStock

Brand Name:	Friend
Model Number:	SRL-Z
MOQ:	one set
Price:	negotiation
Payment Terms:	L/C, T/T
Supply Ability:	60 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu province,China

Certification:

CE,SGS,TUV

Material:

PVC Powder

Motor Type:

Double Speed Motor

Wall Thickness:

6mm

Warranty:

One Year

After-sales Service:

Engineers Available To Service Machinery Overseas

Motor Power:

45/55kw,55/75kw

Packaging Details:

wooden package

Supply Ability:

60 sets per month

Highlight:

high speed mixer machine

plastic raw material mixer

Product Description

Plastic SRL-Z series high speed mixer for PVC powder / PVC plastic mixer

1. Application:

SRL series cooling mixer machine has advanced technology, safe and reliable, convenient to operate. Little volume, light weight, high efficiency, low energy consumption, low noise, corroded not easily.

SRL series cooling mixer machine equipped with SHP series high-speed mixer machine, can widely used in Mix, drying, coloring and other processing for all kinds of plastics. Cooling mixer machine can cool the finished hot material, to eliminate the residual gas in the mixed materials, easy storage of materials, transportation and subsequent processing; plastic processing industry is one of the necessary equipments.

2. Main technical parameters:

Model/specs	SRL-Z100/200 Hot mixing/cold mixing	SRL-Z200/500 Hot mixing/cold mixing	SRL-Z300/600 Hot mixing/cold mixing	SRL-Z500/1000 Hot mixing/cold mixing	SRL-Z800/1600 Hot mixing/cold mixing
Total cubage(L)	100/200	200/500	300/600	500/1000	800/1600
Effective cubbage(L)	65/130	150/320	225/380	375/650	600/1050
Mixed speed(r/min)	650/1300/80	475/950/80	475/950/80	430/860/60	370/740/50
Heating & cooling manner	electric heating self-friction/water cooling
Mixed time(min/batch)	8-12	8-12	8-12	8-12	8-12
Motor Power(KW)	14/22/7.5	30/42/11	40/55/11	47/67/15	60/90/22
Dimension(L×W×H)(mm)	1950×1600×1800	4580×2240×2470	4800×2640×2480	4600×3000×4050	5170×3200×4480
Weight(kg)	2200	3400	3600	6500	8600

3. Picture:

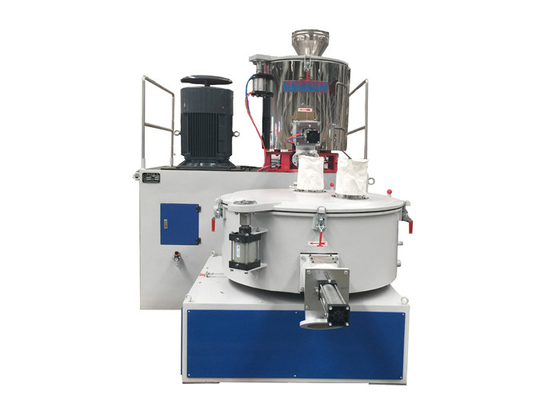

Plastic SRL-Z500/1000 high speed mixer

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 0

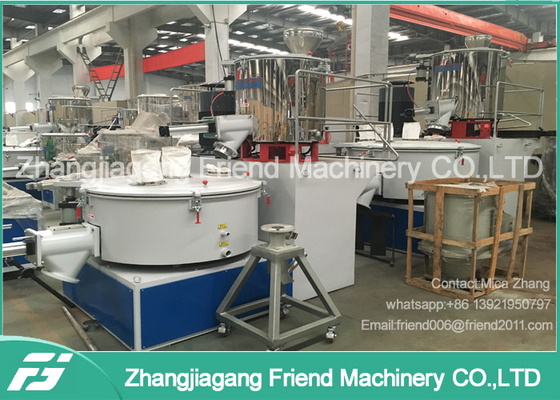

Plastic SRL-Z500/1000 high speed mixer

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 1

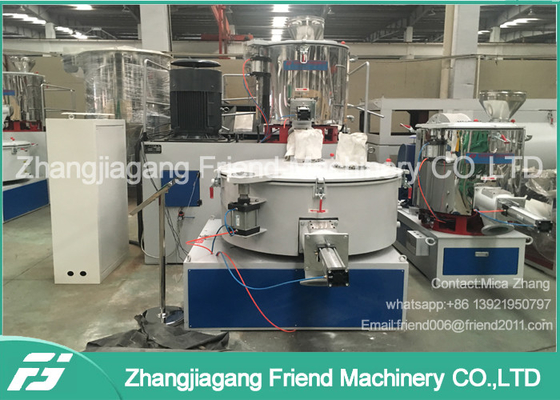

Plastic SRL-Z800/1600 high speed mixer

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 2

SRL-Z800/1600 high speed mixer shaft blade

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 3

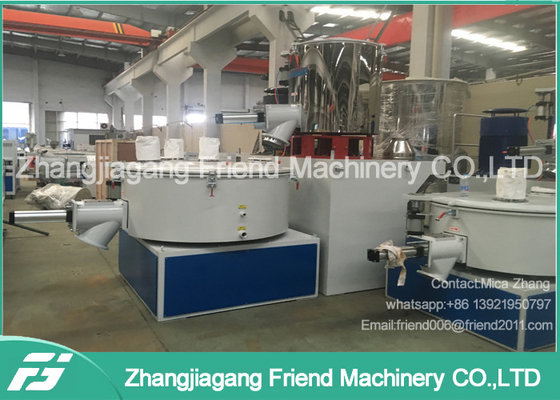

Factory picture

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 4

4.Package

SRL Series PVC High Speed Mixer For PVC Compounding Low Energy Consumption 5
